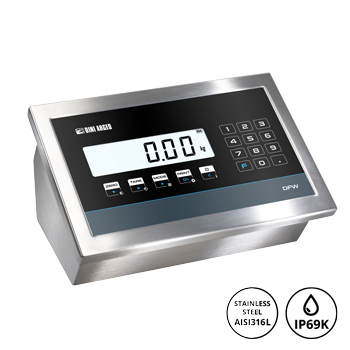

DFWK HYGIENX®: New Multifunctional Weight Indicator for Industrial Industries with High Hygiene Requirements


  DFWK HYGIENX®: New Multifunctional Weight Indicator for Industrial Industries with High Hygiene Requirements


FUNCTIONS
  • Operation modes selectable directly by the user, via dedicated key*:
  • High-resolution display x 10
  • Precision weighing with temporary recalibration by sample weight (for internal factory use)
  • Net/Gross
  • lb/kg conversion
  • Free conversion factor (for meter-counting systems, liter counters etc.)
  • Weights totalization
  • Formulation
  • +/- control, with rapid target and threshold entry
  • Percentage weighing
  • Percentage dosing with programmable target
  • Piece counting
  • Hold
  • Two-speed filling/dosing with zeroing at start (with optional DFIO).
    The "alibi memory" and "setpoint" functions are available in combination with the desired mode of operation and are automatically activated when the corresponding optional board is installed; thus, for example, totalizing, saving each aliby memory weighing, and activating relay outputs are possible.

  • *These quick menu access keys can be inhibited by configuring a dedicated password.
The DFWK HYGIENX Weight Indicator features a robust AISI 316 stainless steel casing and IP68 and IP69K protection ratings, which ensure fast and deep sanitization with high-temperature and high-pressure water jets.

In the chemical industry, as in the pharmaceutical and food industries, it is necessary to ensure thorough cleaning and exclude any risk of chemical, physical or bacterial contamination.

Weight indicator with internal rechargeable battery. CE-M approved (OIML R-76 / EN 45501).

MAIN FEATURES

  • Waterproof 17-key numeric-functional keypad
  • Backlit 25 mm LCD display with 6 high-contrast digits, with icons for indicating active functions
  • AISI 316 stainless steel enclosure
  • IP68 and IP69K certification against water, dust and high-pressure hot water jets
  • Dimensions: 280x143x185 mm
  • 24 bit A/D converter, 4 channels max. 200 conv./sec. Autoselect and up to 8 signal linearization points
  • Max 10,000e or multi-field 3 x 3000e @ 0.3 µV/e in CE-M approved version for legal for trade systems
  • Max 1,000,000 displayable divisions for internal factory use with internal resolution up to 3,000,000 points
  • Connection to max. 8 load cells with 350 Ohm input resistance or max. 16 cells with 700 Ohm input resistance
  • Digital calibration and set-up from keyboard or PC with DINITOOLS
  • Internal rechargeable battery with autonomy up to 60 hours
  • 110-240 Vac power supply via 1.5 m cable with Shuko plug

I/O SECTION

  • Bi-directional RS232/C port configurable for connection to remote printer/labeler
  • Bi-directional RS232/C (optional RS485) port configurable for PC, PLC, additional remote display or radio modem

MAIN CERTIFICATIONS

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • Australian legal for trade certificate of approval (NMI S788)
  • IP68 and IP69K protection rating
FUNCTIONS AVAILABLE FROM REMOTE CONTROL
  • 6-key radio frequency remote control:
    zero; tare; enable/disable function; print; shutdown.
DOWNLOAD
????
 型号说明
DFWK-HGX 17-key indicator specifically for environments with high hygiene requirements. AISI 316 stainless steel housing, IP68/IP69K rating, backlit LCD display and internal rechargeable battery.
Optional power supply cords
Approval
 型号说明
KCEM 为与我司称重显示器并用的经贸易结算认证的称重系统及称重平台提供相应的Welmec认证文件及图版套件。
Storing the weighs
 型号说明
SWM PC端WeiMonitor应用软件：实时监控称重并记录相关重量数据。
Printers/Labellers
 型号说明
LP542TE(S1) Direct termal labeller. 标签可剥离式热敏标签打印机，配有连接称重显示器的1.5m长RS232电缆，外接100/240Vac电源适配器。
RSCBLP10M(S1) 10m长RS232/C电缆，用于称重显示器与LP542、TTP243或SMTPLUS标签打印机连接。
Communication Interfaces
 型号说明
OBRF2G4(S1) 外接2.4GHz无线电模块，用于与称重显示器/重量变送器连接，配有ABS IP65外壳及3m长RS232连接电缆，由称重显示器/重量变送器对其供电，室内工作距离: 45m；户外工作距离：140m。高达50个可配置频道(OBRF配件必须与其它无线电模块一起使用)。
OBRF2G4-USB 868MHz无线电模块，适用于PC，配有PVC外壳和1m长USB/mini USB连接电缆，由PC端USB口对其供电。工作距离：室内70m；室外140m。高达50个可配置频道.
BLTH-3(S1) 蓝牙接口，可与PC或PDA无线通讯。
ALMEM-1(S1) Alibi内存板，用于储存PC/PLC传输的数据，至多可储存12万个重量数据，且该板已集成实时时钟功能。
ETHD(S1) 以太双向口，速度10～100 Mbps，支持协议；TCP, UDP, IP, ARP, ICMP, 以太网 Mac
RF2G469K(S1) Built-in 2.4 GHz radiofrequency module with IP69K protection rating. 集成式868MHz无线电模块，可安装在称重显示器内部的RS232串口上，室内最大工作距离: 45m；户外最大工作距离：140m，高达39个可配置频道(RF2G469K 配件必须与其它无线电模块一起使用)。
Connection cables
 型号说明
ETHCBRJ(S1) 1.5m长以太网电缆，用于称重显示器与PC工作网络组连接（需配备ETH可选配件）。
Date&Time option
 型号说明
DFCLK(S1) 实时时钟板，用于显示及打印日期与时间。
Weight repeater software
 型号说明
MSTSLV 特殊软件型号：仪表作为单台重量变送器使用，或作为变送多台DFW/DGT/MCW称重显示器重量的主机（MASTER）使用。
Weight repeaters
 型号说明
DGT100R-1 该款重量变送器配有IP68不锈钢外壳、5个按键、字高100mm大型LED显示屏及压力调节阀。
DGT60R-1 该款重量变送器配有IP68不锈钢外壳、5个按键、字高60mm大型LED显示屏及特殊称量型号。
Columns and support brackets
 型号说明
STFI-1 不锈钢固定支架，用于墙面安装称重显示器。
CSP38I-1 称重显示器不锈钢地上立柱，尺寸450 x 450 mm，高917 mm，直径Ø = 38 mm
Remote control
 型号说明
TLR-1(S1) 6键433MHz无线电远程遥控器，理想环境下可用距离50m
Cable glands
可选配件
 型号说明
TECSUP 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。
TECMAN 打印版技术说明书（可免费从网上下载）
UMAN 打印版用户说明书（可免费从网上下载）

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
