Interfaces

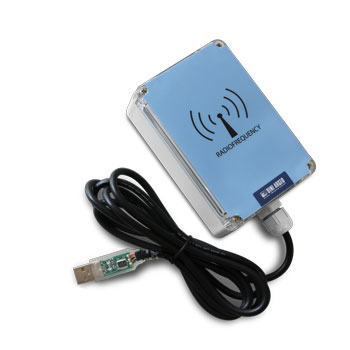

OBRF2G4-USB:带USB接口的2.4 GHz无线电接口

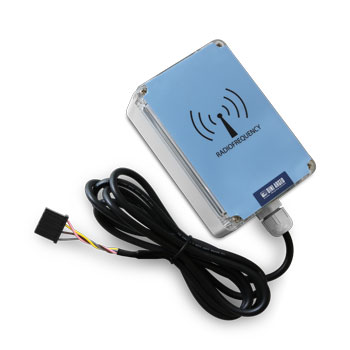

OBRF2G4:带RS232串口的2.4 GHz无线电接口,且外接电源供电

OBRF2G4-USB接口规格参数

  • 与PC连接
  • PVC外盒
  • 外盒尺寸:120x80x55mm
  • USB输入信号
  • 1m长USB/mini USB连接电缆
  • USB自供电

OBRF2G4接口规格参数

  • 与称重显示器/重量变送器连接
  • IP65 ABS外盒
  • 外盒尺寸: 120x80x55mm
  • RS232输入信号
  • 3m长RS232连接电缆
  • 由称重显示器/重量变送器对其供电
  • 电缆标准连接颜色:

    颜色

    接口

    黄色

    TX

    粉色

    RX

    灰色

    GND

    红色

    +Vdc (5-12Vdc)

DOWNLOAD
可选型号
 型号说明
OBRF2G4 外接2.4GHz无线电模块,用于与称重显示器/重量变送器连接,配有ABS IP65外壳及3m长RS232连接电缆,由称重显示器/重量变送器对其供电,室内工作距离: 45m;户外工作距离:140m。高达50个可配置频道(OBRF配件必须与其它无线电模块一起使用)。
OBRF2G4-USB 868MHz无线电模块,适用于PC,配有PVC外壳和1m长USB/mini USB连接电缆,由PC端USB口对其供电。工作距离:室内70m;室外140m。高达50个可配置频道.
OBRF2G4-232 2,4GHz radio module for PC with ABS IP65 case and l=3m cable. Fitted with DB9 connector and external power supply. Max. functioning distance, in appropriate environmental and installation conditions: 45m indoor, 140m outdoor. 39 configurable channels.

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
