Touch screen 5,7"

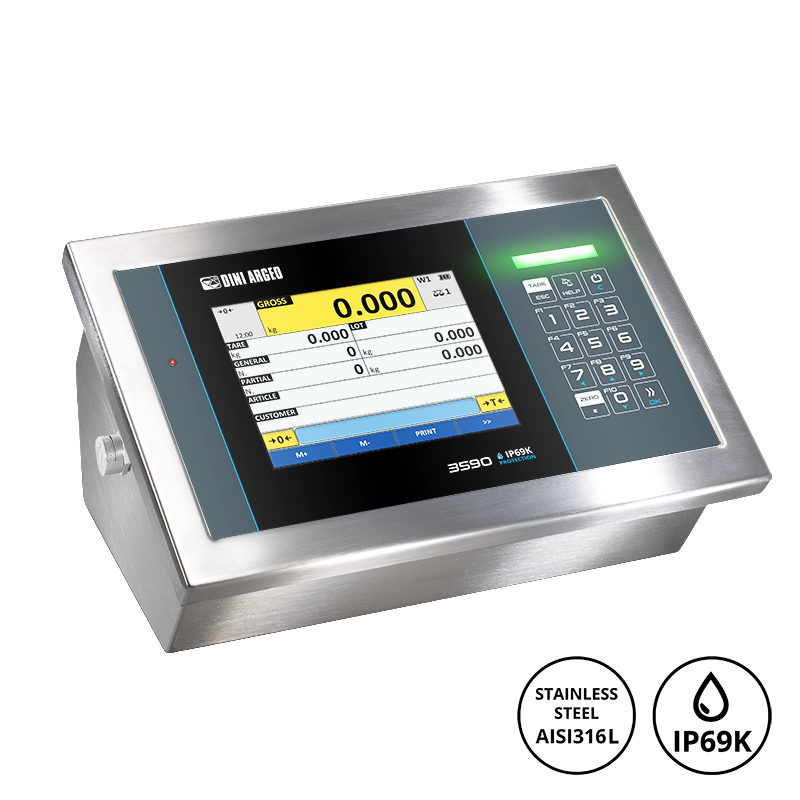

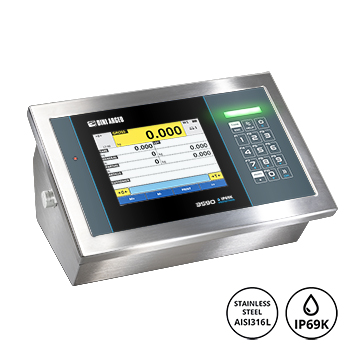

3590EGT HYGIENX: 全新卫生级不锈钢称重显示仪表，为严苛的卫生环境而设计


  3590EGT HYGIENX: 全新卫生级不锈钢称重显示仪表，为严苛的卫生环境而设计


MAIN CERTIFICATIONS
  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • Australian legal for trade certificate of approval (NMI S788)
  • IP68 and IP69K protection rating
I/O SECTION
  • 2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.
  • 1 RS232 serial port (RS485 optional), for connection to repeater, remote scale, badge reader or digital load cells.
  • Standard keyboard emulation input, for connection to barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
  • 4 optoisolated outputs (optional).
  • 2 optoisolated inputs (optional).
  • Modbus RTU interface as standard.
  • Profibus or modbus TCP interface (optional).
  • External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with AF01 standard weighing program).
  • Optional Bluetooth connection, for fast wireless programming of the archives, through PC, tablet or smartphone.
  • Analog output configurable (4-20 mA, 0-20 mA or 0-10 V), needs IOEXPB expansion board.
COMPLETELY CUSTOMIZABLE SCREENS
  • Thanks to the programmable touchscreen display, you can create custom-made interfaces for any application:




  • The "Dini Display Tool" is a PC software which allows you to quickly customize the touchscreen display.
3590 HYGIENX称重显示仪表拥有触摸屏和先进的称重程序，并以其坚固的AISI 316不锈钢外壳、IP68 和 IP69K防护等级而闻名。 可确保使用高温高压水射流进行快速深入的消毒

在化学行业，如制药和食品等行业，有必要确保彻底清洁，并排除任何化学、物理或细菌污染的风险。

3590EGT HYGIENX根据工业4.0的要求提供可追溯性、数据输入、数据库、无线称重存储和传输功能
CE-M 认证 (OIML R-76/EN 45501).

主要特点

  • 背光图像化触摸屏。 尺寸： lxh= 120x90 mm.
  • 多语言软件。
  • 15键防水键盘。
  • 高亮3色灯
  • 触摸键盘可选： QWERTY, AZERTY 或 QWERTZ。
  • AISI 316不锈钢外壳 。
  • IP68/IP69K 认证防水、防尘、防高温高压水枪冲洗。
  • 尺寸： 280x143x185 mm。
  • 可用台面、支柱和壁挂式。
  • 日历时钟和永久数据储存。
  • 标配Alibi Memory,集成在主板上。
  • Internal micro SD slot (optional) for saving logos.
  • Functions available with DiniTools utilities:
    - Configuration, data entry and print formatting.
    - Storage and archiving of all information on PC.
    - Complete configuration back-up.
    - Customization of displays.
  • A/D converter 24 bit, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points.
  • 4 independent analogue channels for reading the weight.

  • Management of up to 16 analogue load cells of 350 Ohm (45 cells at 1000 Ohm).

  • Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version.
  • Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printing formats.
  • 110-240 Vac power supply through a 1.5 m cable with Shuko socket.

APPLICATION SOFTWARE

  • SUPPLIED AS STANDARD:
  • AF01: Totalization and formula weighing

    OPTIONAL:
  • AF02: Pieces/quantity counting
  • AF04: Statistical checking of prepackaged goods
  • AF05: Price compunting and industrial labelling
  • BATCH1: Single product dosage systems in loading and unloading
  • BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included).

CUSTOMISED APPLICATIONS

  • Thanks to the integrated development area, it is possible to create completely customized applications:
    - Guided procedures, messaging for the operator
    - Management of serial ports, customization of protocols
    - Complete management of digital I/O
    - Sequential or simultaneous automations
    - Data entry, customized archives

    Dini Argeo also offers the service of development of customized programs, by estimate.
DOWNLOAD
????
Optional power supply cords
????
 型号说明
AF02 AF02 optional software for pieces/quantity counting.
AF04GT AF04 optional software for statistical checking of prepackaged goods.
AF05 AF05 optional software for price compunting and industrial labelling.
BATCH1 BATCH1 optional software for single product dosage systems in loading and unloading.
BATCH BATCH optional software - Multicomponent dosage systems in loading and unloading
CHECK CHECK optional software - Weight packages on a conveyor belt functions.
Software for display customisation
Software for compiling the databases
Approval
 型号说明
KCEM 为与我司称重显示器并用的经贸易结算认证的称重系统及称重平台提供相应的Welmec认证文件及图版套件。
Storing the weighs
 型号说明
SWM PC端WeiMonitor应用软件：实时监控称重并记录相关重量数据。
Printers/Labellers
 型号说明
PR80-1(S1) Thermal printer with print cutter. Paper roll not included.
LP542TE(S1) Direct termal labeller. 标签可剥离式热敏标签打印机，配有连接称重显示器的1.5m长RS232电缆，外接100/240Vac电源适配器。
RSCBLP(S1) 1.5m长RS232/C电缆，用于称重显示器与LP542、TTP243或SMTPLUS标签打印机连接。
RSCBLP10M(S1) 10m长RS232/C电缆，用于称重显示器与LP542、TTP243或SMTPLUS标签打印机连接。
PRNSERV 提供满足客户需求的打印格式配置技术服务：为OBTPR/OBMMC/OBMDP/TM295/LX300打印机。
APRNSERV 提供满足客户需求的打印格式配置技术服务：为LP542S/SMTPLUS标签打印机，通过可用软件可设置多达4种不同的打印格式（常用打印格式、重量累计格式、产品累计格式、部分累计格式等）。
对于复杂的打印格式（例如：logo设计、条码设计等），价格需另行评估。
Display customization
 型号说明
GTMEM 10 memories set for display customization with logos and images.
Communication Interfaces
 型号说明
OBRF2G4(S1) 外接2.4GHz无线电模块，用于与称重显示器/重量变送器连接，配有ABS IP65外壳及3m长RS232连接电缆，由称重显示器/重量变送器对其供电，室内工作距离: 45m；户外工作距离：140m。高达50个可配置频道(OBRF配件必须与其它无线电模块一起使用)。
OBRF2G4-USB 868MHz无线电模块，适用于PC，配有PVC外壳和1m长USB/mini USB连接电缆，由PC端USB口对其供电。工作距离：室内70m；室外140m。高达50个可配置频道.
RF2G469K(S1) Built-in 2.4 GHz radiofrequency module with IP69K protection rating. 集成式868MHz无线电模块，可安装在称重显示器内部的RS232串口上，室内最大工作距离: 45m；户外最大工作距离：140m，高达39个可配置频道(RF2G469K 配件必须与其它无线电模块一起使用)。
ETHD(S1) 以太双向口，速度10～100 Mbps，支持协议；TCP, UDP, IP, ARP, ICMP, 以太网 Mac
BLTH-3(S1) 蓝牙接口，可与PC或PDA无线通讯。
RS485C(S1) RS485 internal interface (mounting and cable gland not included)
RS485OPTO(S1) RS485 optoisolated internal interface (mounting and cable gland not included)
 型号说明
CANOPEN1S 485转canopen通讯配件 导轨安装
Connection cables
 型号说明
RSCBRJ(S1) 长1.5m RS232/C连接电缆，用于称重显示器与PC连接，一端用于连接PC的9芯母口，一端用于连接称重显示器的RJ接口。
ETHCBRJ(S1) 1.5m长以太网电缆，用于称重显示器与PC工作网络组连接（需配备ETH可选配件）。
Weight repeaters
 型号说明
DGT100R-1 该款重量变送器配有IP68不锈钢外壳、5个按键、字高100mm大型LED显示屏及压力调节阀。
DGT60R-1 该款重量变送器配有IP68不锈钢外壳、5个按键、字高60mm大型LED显示屏及特殊称量型号。
Columns and support brackets
 型号说明
STFI-1 不锈钢固定支架，用于墙面安装称重显示器。
CSP38I-1 称重显示器不锈钢地上立柱，尺寸450 x 450 mm，高917 mm，直径Ø = 38 mm
Digital Inputs / Outputs
 型号说明
C2IN(S1) 2 optoisolated input (mounting and cable gland not included)
C4OUT(S1) 4 optoisolated output (mounting and cable gland not included)
IOEXPB(S1) Internal expansion board with 12 OUTPUTS and 6 INPUTS. (installation and cable gland excluded).
DAC16O-2(S1) 16位D/A模拟输出：0至10Vdc或0至20mA，输出电流的电阻为350 Ohm，输出电压的电阻为10K Ohm。
Keyboard protection cover
 型号说明
CVRXT Kit of 10 moulded protective covers in transparent plastic, for indicator 3590ED e 3590EGT.
Remote control
Cable glands
Other options
 型号说明
TECSUP 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。
UMAN 打印版用户说明书（可免费从网上下载）
TECMAN 打印版技术说明书（可免费从网上下载）

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
