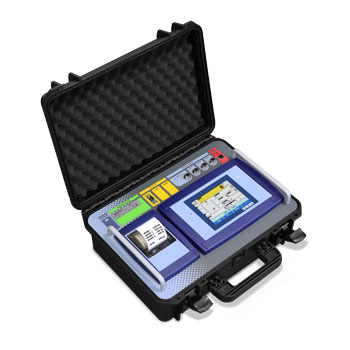

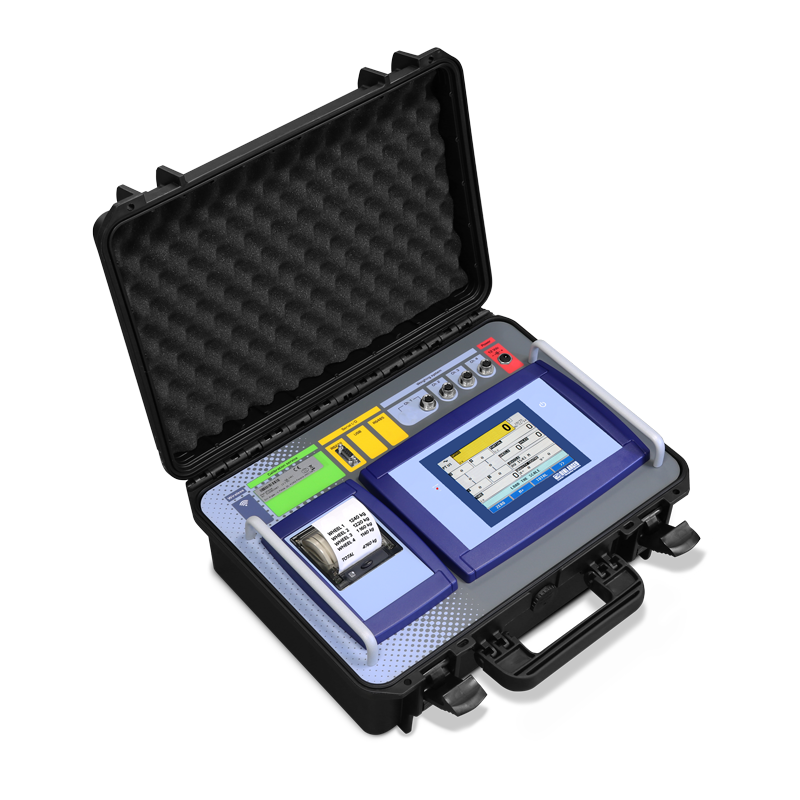

3590ETKR "TOUCH": Touch Screen weight indicator with transport case
|
|
| |
|
|
Digital weight indicator with a big touch screen display, suitable for the weighing of vehicles, planes and objects with multiple points of support. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501). | | | 主要特点 |

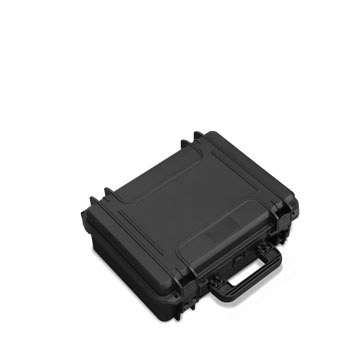

| | - ABS transport case, with housing for the indicator and space for extra accessories.

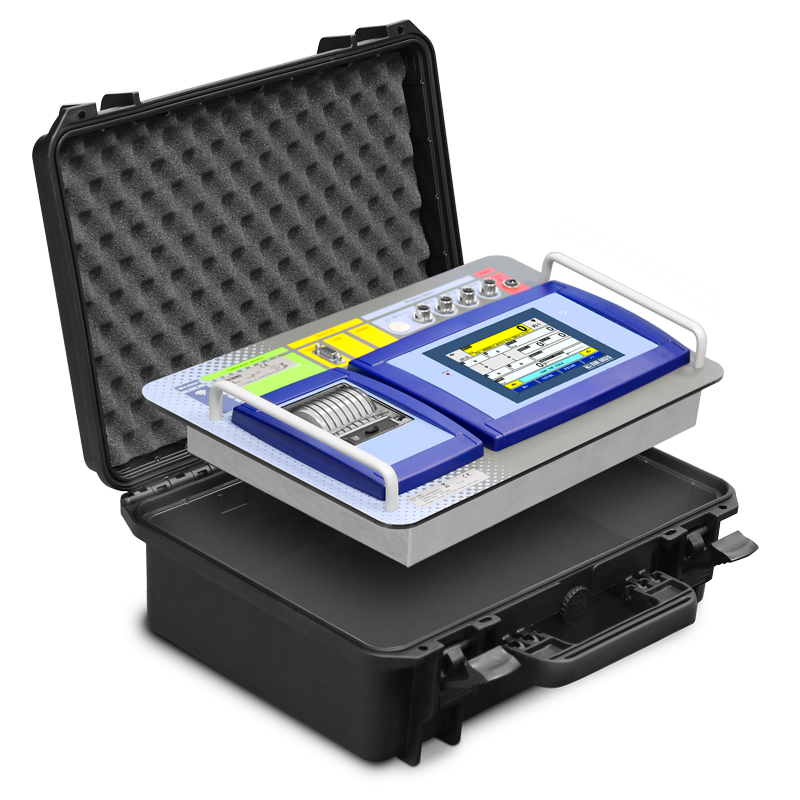

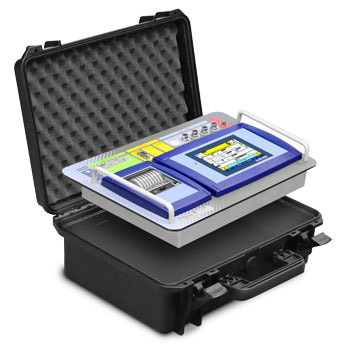

- 3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.
- Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
- Multilanguage software.
- QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen, selectable.
- Dimensions: 325x460x170 mm. Weight: about 5kg.
- Fitted with attached thermal printer.
- Real time clock and permanent data storage.
- Fitted alibi memory, integrated on the motherboard.
- Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
- Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens. - 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
- 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
- Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
- Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Connectable to printers and labellers with free programmation of the printout formats.
- Power supply through built-in rechargeable battery, the operating time is of about 10 hours.
|
| | | I/O SECTION |
| | - Available on panel:
- One RS232 serial ports, for connection to PC, on 9-pole connector.
- Available on internal side:
- 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
- 1 RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.
- Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
- Up to 4 optoisolated outputs (optional).
- Up to 2 optoisolated inputs (optional).
|
|
|
????
| | 型号 | 说明 |
 | 3590ETKR-3 | Touch screen indicator with AF08 software. Rack version with transport case. Colour display.
|
 | 3590ETKR2G4-1 | For WWS with Radiofrequency (WWS...2G4-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display and radio module. |
 | 3590ETKR09-3 | Touch screen indicator with AF08 software. Rack version with transport case. Colour display.
|
| 3590ETKR2G4-AF09-1 | For WWS with Radiofrequency (WWS...2G4-y) only. Touch screen indicator in transport case with printer, AF09 software. Colour display and radio module. |
Optional power supply cords
| | 型号 | 说明 |
 | PWCORDUKVDE | Power supply cord with BS1363 plug (UK plug). |
 | PWCORDAUSVDE | Power supply cord with AU plug. |
????
| | 型号 | 说明 |
 | AF03GT | AF03 optional software for Weighbridges - vehicle In/Out. |
Software for compiling the databases

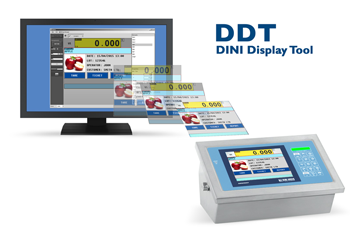

Software for display customisation
Protection against electric discharges
| | 型号 | 说明 |
 | 3590EEP | (S1) 保护卡，防止漏电或静电干扰，符合IEC 1000-4-5/D (IEC 801-5/D) |
证书
| | 型号 | 说明 |
 | KCEM | 为与我司称重显示器并用的经贸易结算认证的称重系统及称重平台提供相应的Welmec认证文件及图版套件。 |
存储设备
| | 型号 | 说明 |
 | USBEGTKR | Built-in USB port kit for indicator in transport case. It does not occupy serial ports. Complete of USB key for PC. TAKE NOTE: this interface is not available on its own, always to be combined with a weight indicator when ordering. |
 | USBK | 5根USB棒，与USBC选配件一起使用。 |
 | SWM | PC端WeiMonitor应用软件：实时监控称重并记录相关重量数据。 |
热敏/标签打印机
| | 型号 | 说明 |
 | PRNSERV | 提供满足客户需求的打印格式配置技术服务：为OBTPR/OBMMC/OBMDP/TM295/LX300打印机。 |
| CODEPG | Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA) |
Digital Inputs / Outputs
| | 型号 | 说明 |
 | C2IN | (S1) 2 optoisolated input (mounting and cable gland not included) |
 | C4OUT | (S1) 4 optoisolated output (mounting and cable gland not included) |
Display customization
| | 型号 | 说明 |
 | GTMEM | 10 memories set for display customization with logos and images. |
通讯接口
| | 型号 | 说明 |
 | WIFITD-3 | (S1) WI-FI接口（通过无线接入点），用于与公司计算机系统无线通讯。 |
 | BLTH-3 | (S1) 蓝牙接口，可与PC或PDA无线通讯。 |
 | ETHD | (S1) 以太双向口，速度10～100 Mbps，支持协议；TCP, UDP, IP, ARP, ICMP, 以太网 Mac |
Weight repeaters
| | 型号 | 说明 |
 | DGT100R-1 | 该款重量变送器配有IP68不锈钢外壳、5个按键、字高100mm大型LED显示屏及压力调节阀。 |
连接电缆
| | 型号 | 说明 |
 | ETHCBRJ | (S1) 1.5m长以太网电缆，用于称重显示器与PC工作网络组连接（需配备ETH可选配件）。 |
外接PC键盘/扫描枪/连接电缆
| | 型号 | 说明 |
 | KBCBCE | (S1) 带MINI DIN接口的电缆，用于3590E/CPWE称重显示器与PC键盘或条码扫描枪连接。 |
 | PCKBRD | 外接PC键盘，通过PC键盘输入口（E系列称重显示器标配或IFKBRD可选配件）及mini DIN接口（可选配件）与称重显示器连接。 |
Scanners are only compatible with models 3590ETKR and 3590ETKR09.
Remote control
Cable glands
Consumable materials
| | 型号 | 说明 |
 | RPT57C | 50卷热敏打印纸卷：长30m，宽57mm，孔径12mm，外径51mm |
附件
| | 型号 | 说明 |
| TECSUP | 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。 |
| UMAN | 打印版用户说明书（可免费从网上下载） |
| TECMAN | 打印版技术说明书（可免费从网上下载） |
