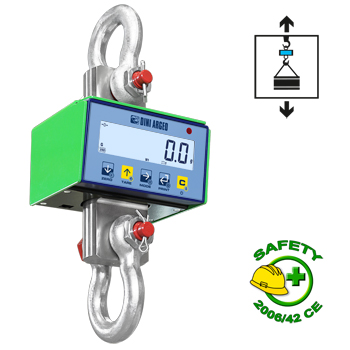

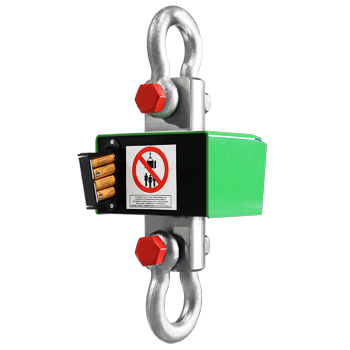

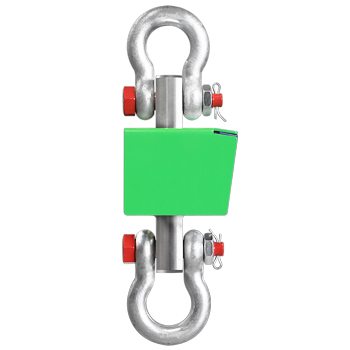

MCWN "NINJA" SERIES SINGLE SECURITY SUSPENDED CRANE SCALES


  MCWN "NINJA" SERIES SINGLE SECURITY SUSPENDED CRANE SCALES


MAIN FUNCTIONS
  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Percentage batching with programmable target
    - Piece counter
    - Hold
    - PEAK, detection of weight peaks
    - Newton to Kg converter

    The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board;

  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

    * These quick access keys to the menus can be blocked by configuring a dedicated password.
Easy to use and reliable professional digital crane scales, for weighing in industrial environments, fitted with protective transport case.
The single security system makes them suitable for lifting and weighing the load.
Thanks to their compact size, these crane scales just slightly reduce the lifting distance of the crane. Available also CE-M APPROVED. Fitted with test certificate obtained with standard weights.

MAIN FEATURES

  • Single security system, for the lifting and the weighing of the load.
  • In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
  • Fitted with the following upper and lower shackle:
    GR3 for MCWNT1
    GR6 for MCWNT3
    GR6 for MCWNT6
    GR9 for MCWNT9.

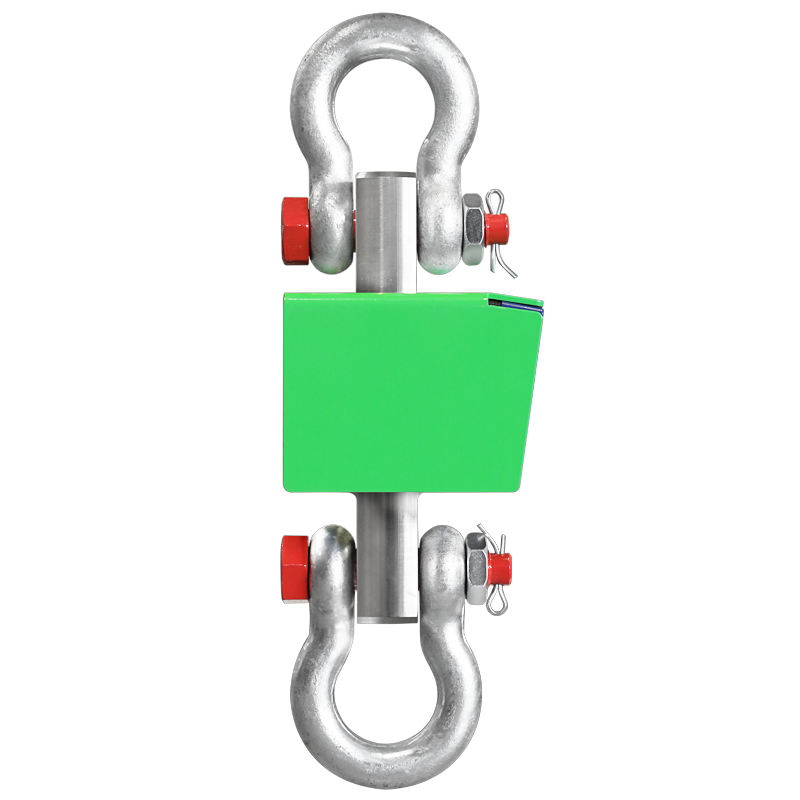

  • Compact size and minimum distance between upper and lower shackle.

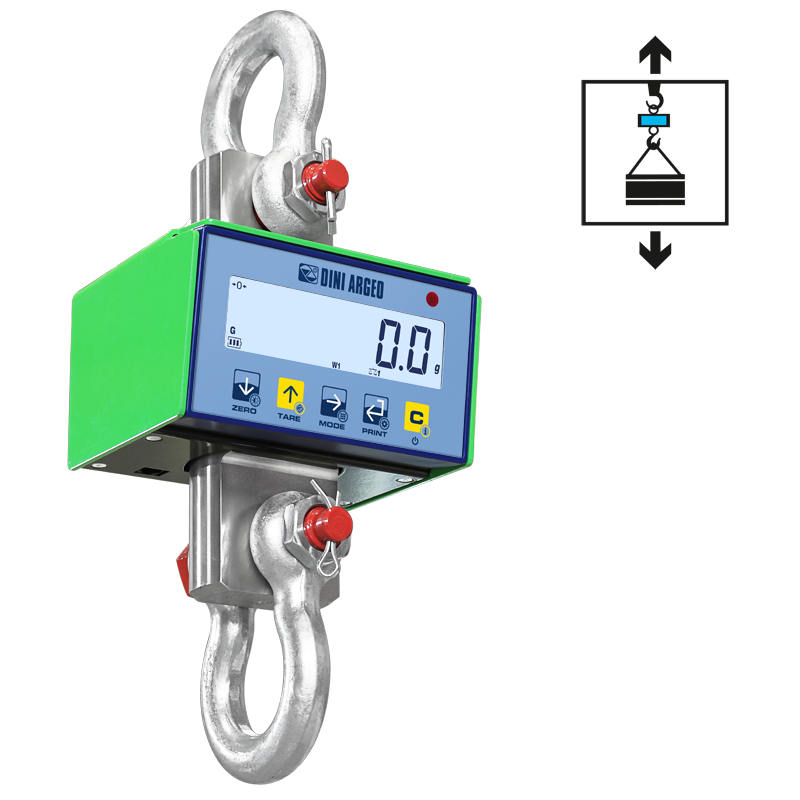

  • 25 mm LCD backlit display, easily visible in any lighting condition.
  • Precision: +/- 0.03% on MAX.
  • 5-key waterproof keypad: Zero, semi automatic or preset Tare, Mode, Print, On/Off.
  • Sturdy case in oven-fire painted steel.
  • Fitted with infrared remote control for up to 8m distance use. The remote control can be configured by the customer as a single automatic tare or as a remote keypad.
  • Power supply:

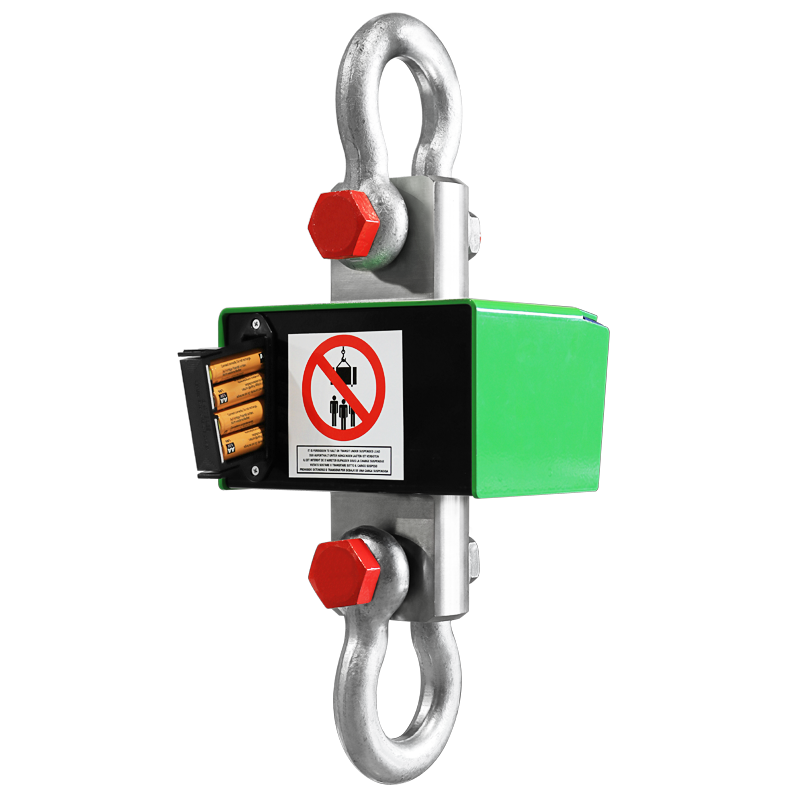

    - 4 AA batteries included as standard with 40 hour runtime, also compatible with rechargeable AA batteries.
    - Optional internal rechargeable battery kit.
  • Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools.
  • Programmable digital filter and auto switch-off.
  • Operating temperature: -10 /+40 ºC.
  • RS232 serial port on RJ11 connector for quick programming with Dinitools.

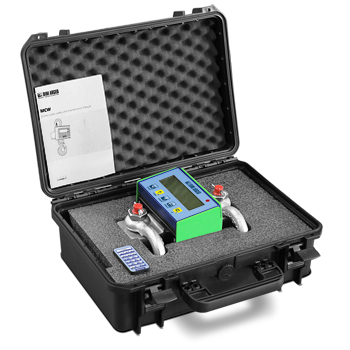

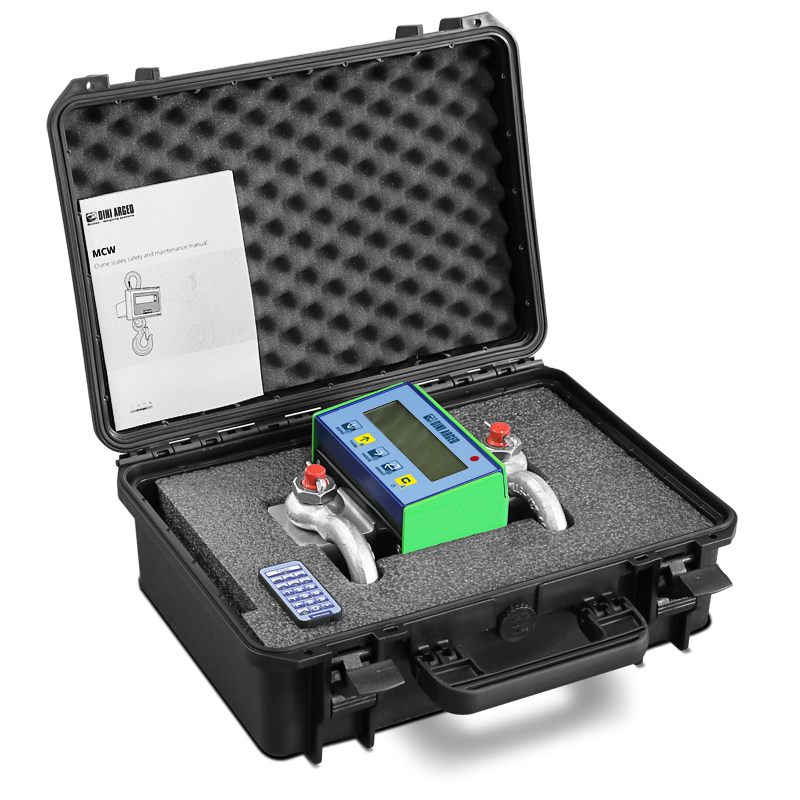

  • Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm.

OPTIONS (ONLY AT TIME OF ORDER)
DOWNLOAD
????

Code		Max
(kg)		d
(kg)
(kg)
MCWNT1-3300/600/15000,1/0,2/0,5--
MCWNT1M-3 1500--0,5
MCWNT3-3600/1500/30000,2/0,5/1--
MCWNT3M-3 3000--1
MCWNT6-31500/3000/60000,5/1/2--
MCWNT6M-3 6000--2
MCWNT9-33000/6000/95001/2/5--
MCWNT9M-3 9000--5
 型号说明
CT6 ISO 17025 (ACCREDIA/DAKKS)：标定证书，为量程不超过300 - 1500kg的工业秤、吊秤使用。
CT7 ISO 17025 (ACCREDIA/DAKKS)：标定证书，为量程不超过1500 - 3000kg的工业秤、吊秤使用。
CD3 DINI ARGEO ISO 9001标定证书，使用专门的砝码进行标定，为量程不超过1500 - 6000kg的秤使用。
CD4 DINI ARGEO ISO 9001标定证书，使用专门的砝码进行标定，为量程不超过6000 - 15000kg的秤使用。
Rechargeable battery
Storing the weighs
 型号说明
SWM PC端WeiMonitor应用软件：实时监控称重并记录相关重量数据。
Communication Interfaces
 型号说明
RF2G4-TTL(S1) 集成式2.4 GHz无线电模块，可安装在称重显示器内部的RS232串口上，室内工作距离: 45m；户外工作距离：140m，高达39个可配置频道(RF2G4-TTL 配件必须与其它无线电模块一起使用)。
ALMEM-1(S1) Alibi内存板，用于储存PC/PLC传输的数据，至多可储存12万个重量数据，且该板已集成实时时钟功能。
BLTH-3(S1) 蓝牙接口，可与PC或PDA无线通讯。
OBRF2G4-USB 868MHz无线电模块，适用于PC，配有PVC外壳和1m长USB/mini USB连接电缆，由PC端USB口对其供电。工作距离：室内70m；室外140m。高达50个可配置频道.
Weight repeaters
 型号说明
DGT100R-1 该款重量变送器配有IP68不锈钢外壳、5个按键、字高100mm大型LED显示屏及压力调节阀。
DFWPM2G4 便携式无线通讯重量变送器，配有ABS外壳、5个按键及LCD背光显示屏。
DFWPM2G4-USB 便携式无线通讯重量变送器，配有ABS外壳、5个按键及LCD背光显示屏、USB接口及储存卡以储存称重数据。
DFWKPXP Multifunction indicator with 17-key keypad and attached thermal printer with ABS case, backlit LCD display, real time clock, and standard weighing programme.
MSTSLV 特殊软件型号：仪表作为单台重量变送器使用，或作为变送多台DFW/DGT/MCW称重显示器重量的主机（MASTER）使用。
OBRF2G4(S1) 外接2.4GHz无线电模块，用于与称重显示器/重量变送器连接，配有ABS IP65外壳及3m长RS232连接电缆，由称重显示器/重量变送器对其供电，室内工作距离: 45m；户外工作距离：140m。高达50个可配置频道(OBRF配件必须与其它无线电模块一起使用)。
Date&Time option
 型号说明
DFCLK(S1) 实时时钟板，用于显示及打印日期与时间。
附件
 型号说明
GG1T5 1.5t吊钩，配有安全锁
GG7 7t吊钩，配有安全锁
GG11 11t吊钩，配有安全锁
GG15 15t吊钩，配有安全锁
CA2 2.5t吊环
CA4 4t吊环
CA8 8t吊环
CA15 15t吊环
Other options
 型号说明
TECSUP 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。
UMAN 打印版用户说明书（可免费从网上下载）
TECMAN 打印版技术说明书（可免费从网上下载）

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
