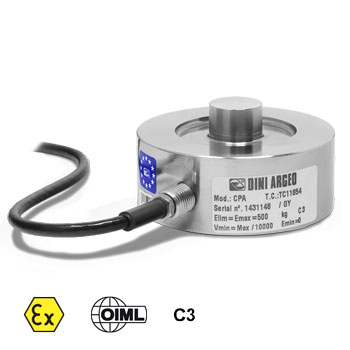

CPA SERIES LOW PROFILE COMPRESSION LOAD CELLS
|
|
| |
|
|
符合OIML R60标准
|
|
|
|
Stainless steel compression load cells suitable for extremely harsh environments and high temperatures.
CAPACITIES (kg): 150, 300, 500, 1000, 2000, 3000, 5000, 7000, 10000, 20000, 30000, 50000.
OIML R60, C3 precision class from 2000 a 10000kg.
Stainless steel. IP68 protection.
 | | | 性能参数 |
| | - Minimum load cell verification interval: Vmin = EMax / 10000
- Full Scale Output: 2mV/V +/- 0,1% (1,3mV/V for CPA150)
- Repeatability: 0,01% F.S.
- Combined Error 0.025% Emax (≤10t), 0.05% Emax (≥20t)
- Temperature effect on zero: 0,0014% /°C
- Temperature effect on full scale output: 0,0013% /°C
- Compensated Temperature Range: -10°C/+40°C
- Operating Temperature Range: -30°C/+60°C
* Upon request up to 200°C - Creep error after 4 hours: 0,03% F.S.
- Maximum tolerated excitation voltage: 15 Vdc
- Input Resistance: 1100 ± 50 Ohm
- Output Resistance: 1000 ± 10 Ohm
- Zero Balance: ± 2% F.S.
- Insulation Resistance: >5000 MOhm
- Safe Overload: 150% F.S.
- 6-wire shielded cable, 5 mm diameter:
- 5 m long for the versions from 150 up to 10000kg
Wiring Code | | Colour | Function | | -- | SHIELD | | GREEN | OUTPUT + | | PINK | SENSE + | | RED | INPUT + | | WHITE | OUTPUT - | | GREY | SENSE - | | BLACK | INPUT - |
|
|
|
