DGT4X DIGITAL：数字重量变送器/称重显示器
|
|
| |
|
|
|
|
 | | | TECHNICAL FEATURES |
| | - Number of scales/channels: 1
- Calibration:
- Theoretical (mV\V)
- With sample weights
- Via WEB SERVER
- From the keyboard

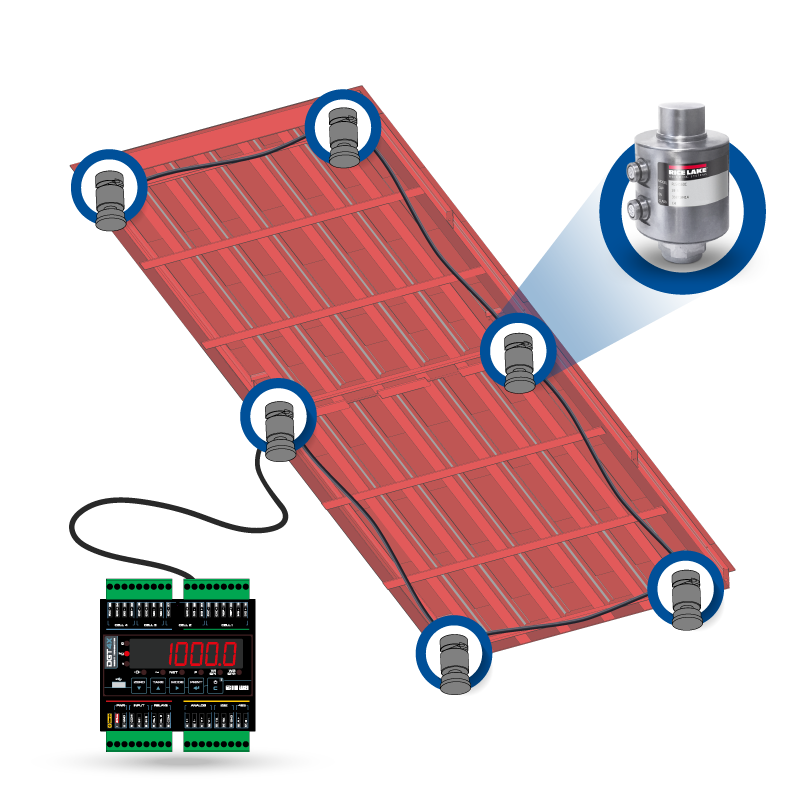

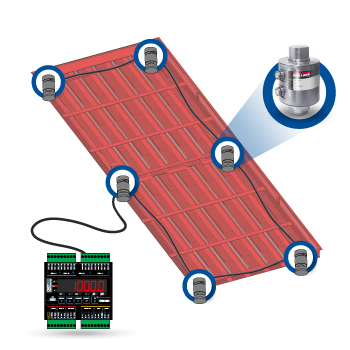

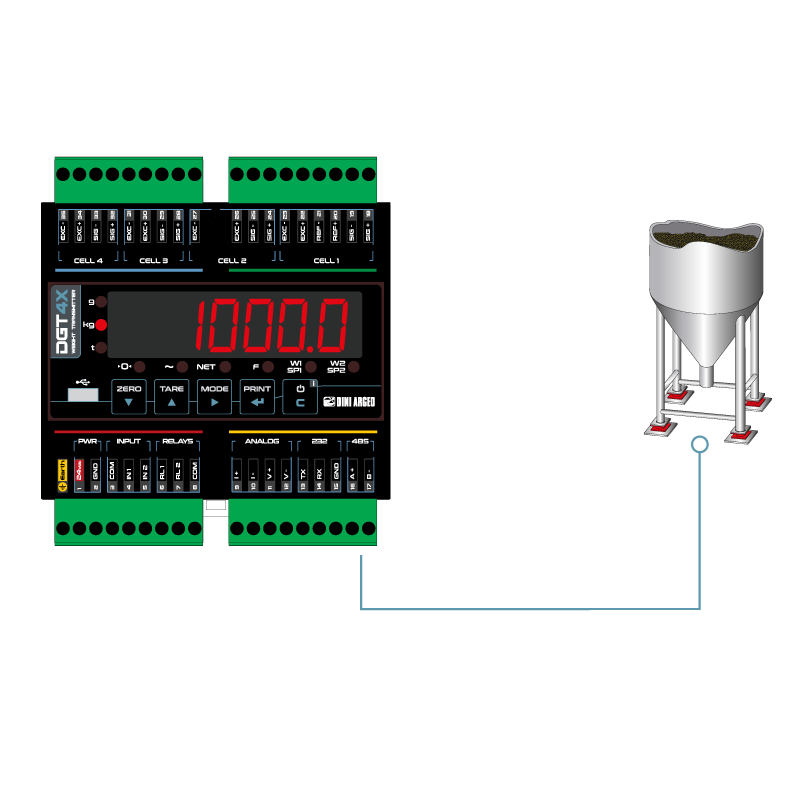

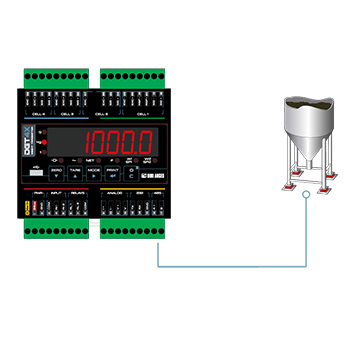

- From PC with Dinitools - Maximum number of load cells: Up to 16 Dini Argeo and Rice Lake digital load cells
- Load cell excitation voltage: digital load cells need a dedicated optional power supplier
- Number of legal-for-trade divisions:
Up to 10,000e or multi-field 3,000+3,000e - Linearization: up to 8 points
- Communication ports:
- 1 micro-USB port (device) for PC configuration with Dinitools® and XSpeed Tool
- 1 RS485 for load cells management and repeater connection
- 1 RS232 port (Mod. DGT4X / DGT4XAN)
- Analog output: 16 bit
(DGT4XAN Model) 4-20mA or 0-10Vdc
- Fieldbus: see available models - Communication protocols: Modbus RTU, ASCII or Fieldbus
- Communication rate:
- On serial port up to 1600 Hz
- On Fieldbus up to 120 Hz
- Via Modbus RTU up to 110 Hz - PC programs for configuration: Dinitools
- Display: 14,2 mm red LED, 6 characters
- Keyboard: 5-key mechanical
Keyboard functions: Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by
Functions modes: Setpoint, High resolution, Alibi Memory, Unit of measure conversion, Unbalancing alarm, Broken load cell exclusion - Housing: ABS, for Din bar (106 x 56 x 118 mm)
- Power supply: 12÷24 Vdc
- Operating temperature range:
- For internal use -20°C ÷ +60°C
- Approved -10°C ÷ +40°C - Max humidity: 85%, non-condensing
|
|
|
DIN导轨式安装多功能重量变送器。
可作为独立的4通道使用，或经接线盒连接的4个非独立通道使用，而且可诊断每个连接的传感器状况，诸多接口使其适用于任何自动化系统。还提供经CE-M认证型号（OIML R-76 / EN 45501）。
|
|
????
RS485 lightning and surge protection
Approval
| | 型号 | 说明 |
 | KCEM | 为与我司称重显示器并用的经贸易结算认证的称重系统及称重平台提供相应的Welmec认证文件及图版套件。 |
PC Softwares
Printers/Labellers (on RS232, only for version without fieldbus module)
| | 型号 | 说明 |
 | TPRP | (S1) 面板安装式热敏打印机，通过连接电缆可与称重显示器连接使用，供电：5Vdc（不提供电源适配器）。 |
| | 型号 | 说明 |
 | ALMEM-1 | (S1) Alibi内存板，用于储存PC/PLC传输的数据，至多可储存12万个重量数据，且该板已集成实时时钟功能。 |
 | DFCLK | (S1) 实时时钟板，用于显示及打印日期与时间。 |
Power supplier for DIN bar
Communication Interfaces (on RS232, only for version without fieldbus module)
| | 型号 | 说明 |
 | SETHDIN-1 | RS232 / RS485 / 以太网通讯转换器，可与Dini Argeo任何一台称重显示器的串口相连，其外壳为ABS材质，可安装在Omega / DIN导轨上。 |
Other options
| | 型号 | 说明 |
| UMAN | 打印版用户说明书（可免费从网上下载） |
| TECMAN | 打印版技术说明书（可免费从网上下载） |
| TECSUP | 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。 |
