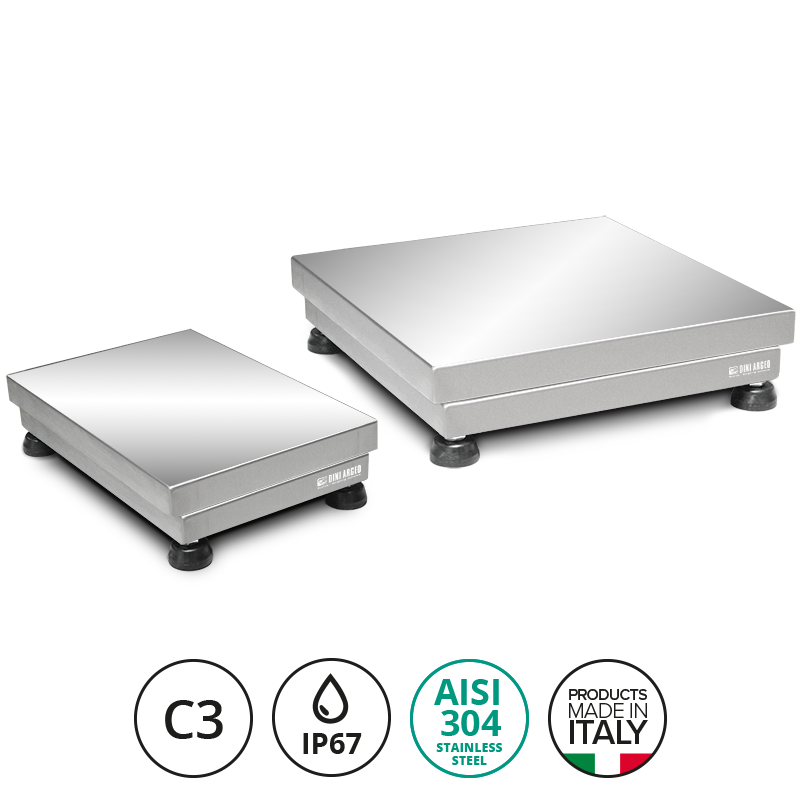

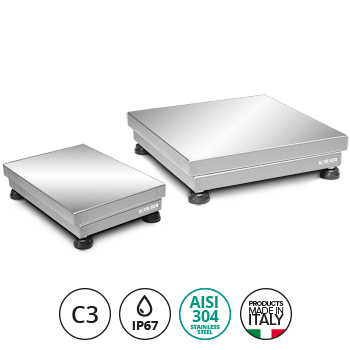

TE SERIES SINGLE-CELL PLATFORMS
|
|
| |
|
|
AISI 304 Stainless Steel. Load cell in Stainless Steel. IP67 protection rating.
Precision class C3, C3MR.
Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements.
| ENVIRONMENT: MODERATELY WET, CORROSIVE |
|
|
????
| |
Code | l x w x h
(mm) | Max
(kg) | d
(g) |
(g)* |
2R (g)* | d HR
(g)* |
| TSE3 | 230x330x90 | 3 | 0,5 | 1 | 0,5-1 | 0,2 |
| TSE6 | 230x330x90 | 6 | 1 | 2 | 1-2 | 0,5 |
| TSE15 | 230x330x90 | 15 | 2 | 5 | 2-5 | 1 |
| TTE6 | 330x330x90 | 6 | 1 | 2 | 1-2 | 0,5 |
| TTE15 | 330x330x90 | 15 | 2 | 5 | 2-5 | 1 |
| TTE30 | 330x330x90 | 30 | 5 | 10 | 5-10 | 2 |
| TQE15 | 400x400x115 | 15 | 2 | 5 | 2-5 | 1 |
| TQE30 | 400x400x115 | 30 | 5 | 10 | 5-10 | 2 |
| TQE60 | 400x400x115 | 60 | 10 | 20 | 10-20 | 5 |
| TQE150 | 400x400x115 | 150 | 20 | 50 | 20-50 | 10 |
| TME30 | 400x500x115 | 30 | 5 | 10 | 5-10 | 2 |
| TME60 | 400x500x115 | 60 | 10 | 20 | 10-20 | 5 |
| TME150 | 400x500x115 | 150 | 20 | 50 | 20-50 | 10 |
| TCE60 | 500x500x115 | 60 | 10 | 20 | 10-20 | 5 |
| TCE150 | 500x500x115 | 150 | 20 | 50 | 20-50 | 10 |
| TLE60 | 500x600x137 | 60 | 10 | 20 | 10-20 | 5 |
| TLE150 | 500x600x137 | 150 | 20 | 50 | 20-50 | 10 |
| TLE300 | 500x600x137 | 300 | 50 | 100 | 50-100 | 20 |
| TXE60 | 600x600x137 | 60 | 10 | 20 | 10-20 | 5 |
| TXE150 | 600x600x137 | 150 | 20 | 50 | 20-50 | 10 |
| TXE300 | 600x600x137 | 300 | 50 | 100 | 50-100 | 20 |
| TGE150 | 700x700x165 | 150 | 20 | 50 | -- | 10 |
| TGE300 | 700x700x165 | 300 | 50 | 100 | 50-100 | 20 |
| TGE600 | 700x700x165 | 600 | 100 | 200 | 100-200 | 50 |
Connection cables
| | 型号 | 说明 |
| LCCB | 6芯屏蔽电缆，供传感器或接线盒接线使用。€/米 |
| LCCBA | Ex 6-pole shielded cable for RS232 serial port/power supplier, for using in hazardous areas. Price/meter |
Columns and support brackets
| | 型号 | 说明 |
| CSP38I-1 | 称重显示器不锈钢地上立柱，尺寸450 x 450 mm，高917 mm，直径Ø = 38 mm |
| CSP38D | 不锈钢称重显示器地上立柱，尺寸350 x 350 mm，高750 mm |
附件
| | 型号 | 说明 |
| TB60I-1 | 不锈钢小推车，为台面尺寸400x400 mm与400x500 mm的台秤使用。 |
| TB60IEX-1 | Ex II 2GD IIC防爆不锈钢小推车，为台面尺寸400x400 mm与400x500 mm的台秤使用。 |
| TB60BI-1 | 不锈钢小推车，为台面尺寸500x500 mm的台秤使用。 |
| TB60BIEX-1 | Ex II 2GD IIC防爆不锈钢小推车，为台面尺寸500x500 mm的台秤使用。 |
| TB300I-1 | 不锈钢小推车，为台面尺寸500x600 mm与600x600 mm的台秤使用。 |
| TB300IEX-1 | Ex II 2GD IIC防爆不锈钢小推车，为台面尺寸500x600 mm与600x600 mm的台秤使用。 |
| TA60I-1 | 不锈钢小推车，为台面尺寸400x400 mm与400x500 mm的台秤使用。 |
| TA60IEX-1 | Ex II 2GD IIC防爆不锈钢小推车，为台面尺寸400x400 mm与400x500 mm的台秤使用。 |
| TA300I-1 | 不锈钢小推车，为台面尺寸500x600 mm与600x600 mm的台秤使用。 |
| TA300IEX-1 | Ex II 2GD IIC防爆不锈钢小推车，为台面尺寸500x600 mm与600x600 mm的台秤使用。 |
| TPBEI | 不锈钢托盘，为放置打印机或台秤使用。适用于TA或TB型号小推车。 |
