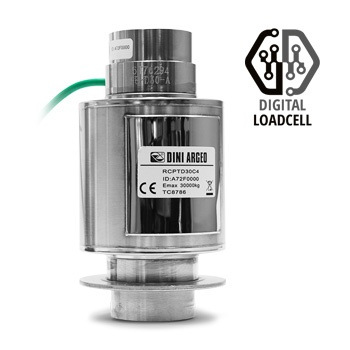

RCPT系列柱式传感器


  RCPT系列柱式传感器


柱式传感器,广泛应用于汽车衡系统,配固定连接板与防冲洗橡皮套。

量程 (kg): 30000, 50000.
内芯合金钢,外部不锈钢 IP68 C3精度

规格参数

  • C3精度
  • 传感器内芯是合金钢结构,外部保护罩是不锈钢结构,激光焊接工艺
  • 优化电缆连接方式
  • IP68
  • 量程可选30000 - 50000 kg
  • 配固定连接板与防冲洗橡皮套
  • 配14m屏蔽电缆
  • 可选检测证书

性能参数

  • Resolution for nominal load: 60.000d
  • Combined error on nominal load: ± 0,01%
  • Compensated temperature range: -10 °C / +40° C
  • Operating temperature range: -30 °C / +70° C
  • Power supply tension: from 10 to 18 Vdc
  • Conversion: 24 bit
  • Connection: RS485
  • Admissible load: 150% F.S.
  • Shielded cable 4 poles, 5mm diameter
????

Code
Max
(kg)
RCPTD30C4-2 30000
 型号说明
WBKPTD830C4-2 Electronics kit for weighbridges made up of 8 RCPTD30C4-2 digital load cells in stainless steel with IP65 protection degree and 30 t capacity, 8 oscillating resting joints, and JB10QD IP66 reinforced polyester junction box.
??? / ?? -?? ?????
 型号说明
GELBOX(S1) 300ml装防冷凝胶,具有密封与绝缘功能,保护传感器不受电磁干扰。
RSCBTW RS422-RS485连接用双屏蔽2条双绞线电缆,(每米)。长度10m
WARNING: For JB10Q/JB10QD: 1200ml of gel required
 型号说明
RS485C(S1) RS485 internal interface (mounting and cable gland not included)
RS485OPTO(S1) RS485 optoisolated internal interface (mounting and cable gland not included)
C2IN(S1) 2 optoisolated input (mounting and cable gland not included)
C4OUT(S1) 4 optoisolated output (mounting and cable gland not included)

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
