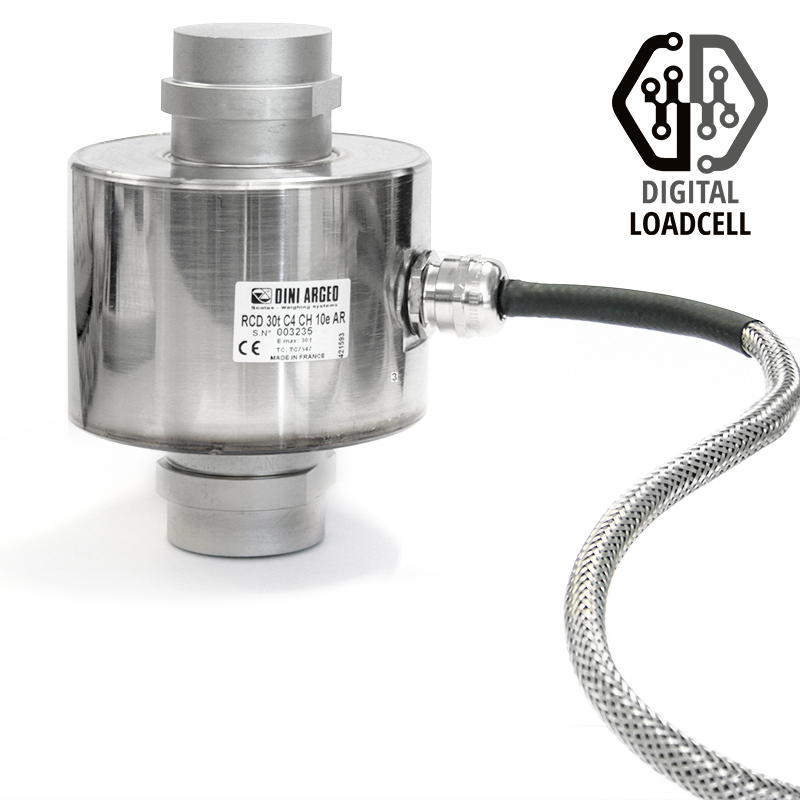

DINI ARGEO DIGITAL COLUMN LOAD CELL, IN STAINLESS STEEL, “RCD” SERIES
|
|
| |
|
|
|
 | | | 线缆定义 |
| |
RCD cell connections | | Colour | Function | Input | | WHITE | EXC + | | BROWN | EXC - | | GREY | IN A + | | PINK | IN B - | | GREEN | OUT A + | | YELLOW | OUT B - | | YELLOW-GREEN | | SHIELD |
|
|
|
不锈钢数字柱式传感器，精度4000d，广泛应用于汽车衡系统，配有"防鼠"屏蔽电缆。
量程 (kg): 30000/40000/50000.
不锈钢 IP68 C4精度
|
|
????
| |
Code | Max
(kg) |
| RCD30C4  | 30000 |
| RCD40C4 | 40000 |
| RCD50C4 | 50000 |
| | 型号 | 说明 |
 | KRCA | 上下承压头用来固定称体 上下安装压头 |
Protection for junction box/electronic circuits
| | 型号 | 说明 |
 | GELBOX | (S1) 300ml装防冷凝胶，具有密封与绝缘功能，保护传感器不受电磁干扰。 |
WARNING:
For JB10Q/JB10QD: 1200ml of gel required
