ATEX AND IECEx VERSION UPON REQUEST The T66 load cell has a number of ATEX and IECEx certification options. Wiring Code Table Wiring Code Color Function RED INPUT + BLUE INPUT- BLACK SENSE + WHITE SENSE - GREEN OUTPUT + YELLOW OUTPUT -

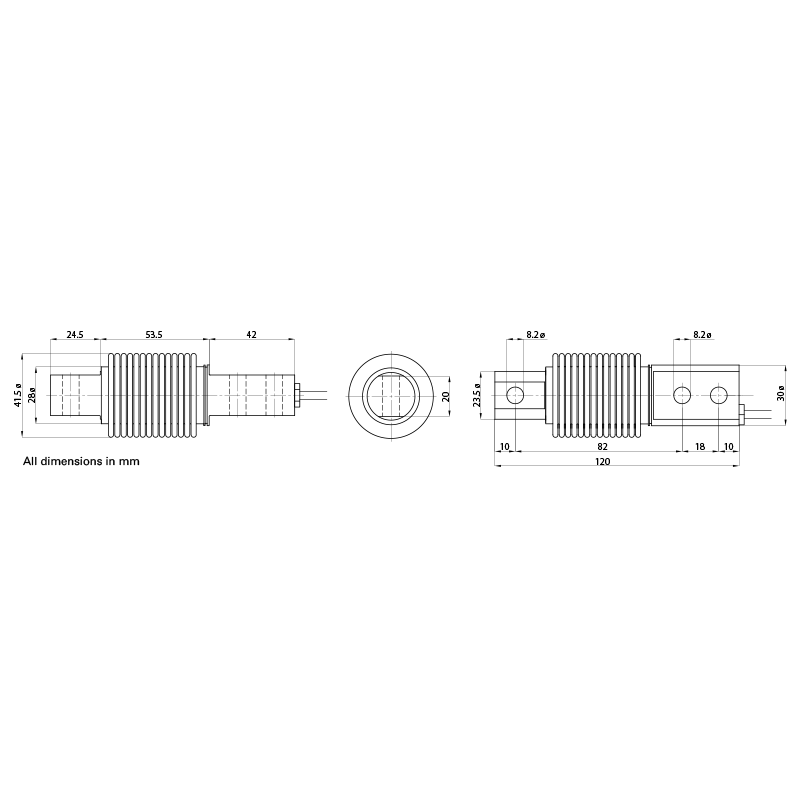

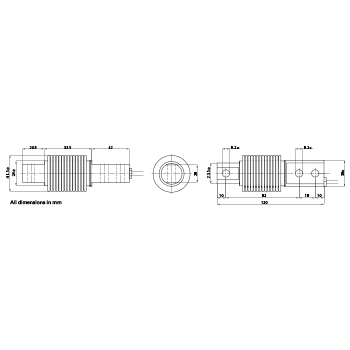

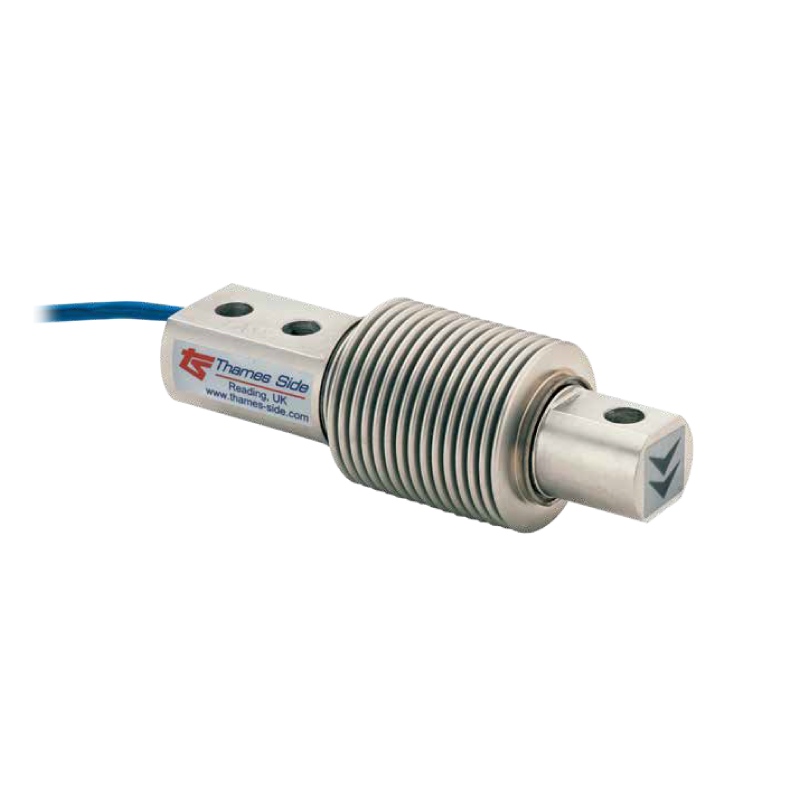

This fully welded stainless steel bending beam load cell is hermetically sealed to IP68 / IP69K and can be used in the harshest industrial environments. It is suitable for weighing platforms, bag fillers, belt weighers and tank weighing in the Food Processing, Chemical, Pharmaceutical and general Bulk Handling industries. CAPACITIES (kg): 5, 10, 20, 30, 50, 75, 100, 200. OIML R60. C3 or C6 precision class. Stainless steel. IP68/IP69K protection. OIML C3 or C6 approved versions are available. A 6 wire cable (with Sense wires) is supplied as standard. For applications in aggressive environments where stress corrosion or acid attack is an issue, a special Parylene coating can be specified as an option. High temperature variants for continuous operation in environments up to 150˚C are also available. 规格参数 Stainless steel load sensor Hermetically sealed, fully welded construction High durability Polyurethane cable IP68 / IP69K Protection 3000 divisions OIML R60 Class C Option: 6000 divisions OIML R60 Class C High Integrity cable entry C3 version available with 4 wire cable on request Available in high temperature version on request Available ATEX and IECEx version on request OIML certificate available upon request Available with optional Parylene coating on request 性能参数 Accuracy Class: C3: 3000 [OIML C3 (3000 division) approval from 10-250kg] C6: 6000 [OIML C6 (6000 division) approval from 50-250kg] Load Cell Capacity (Emax): C3: 5, 10, 20, 30, 50, 75, 100, 150, 200 (250, 300, 500 kg on request) C6: 50, 75, 100, 150, 200 (250 kg on request) Rated Output (Sn): 2 mV/V ± 0.1 % [For 5-20kg capacity range, rated output (Sn) tolerance is ± 0.2 %] Combined Error: C3: < ± 0.017 % Sn C6: < ± 0.008 % Sn Non-repeatability: C3: < ± 0.015 % Sn C6: < ± 0.01 % Sn Minimum load cell verification interval (vmin) = Emax / Y C3: Emax / 10000 kg C6: Emax / 18000 kg Creep (30 minutes): C3: < ± 0.016 % Sn C6: < ± 0.008 % Sn Temperature Effect on Zero Balance: C3: < ± 0.002 % Sn/˚C C6: < ± 0.001 % Sn/˚C Temperature Effect on Span: C3: < ± 0.0012 % Sn/˚C C6: < ± 0.0006 % Sn/˚C Compensated Temperature Range: -10 to +40 ˚C Operating Temperature Range: -30 to +70 ˚C Safe Overload: 200 % Emax Ultimate Overload: 300 % Emax Zero Balance: < ± 2 % Sn Input Resistance: 400 Ω ± 20 Output Resistance: 350 Ω ± 3 Insulation Resistance: > 5000 MΩ @ 100V Recommended Supply Voltage: 5-15 V Maximum Supply Voltage: 15 V Environmental Protection: IP68 / IP69K Maximum deflection at Emax: 0.2-0.4 mm Cable: 3 m length, 5.7 mm diameter, polyurethane material Nominal Shipping Weight: 0.5 kg
