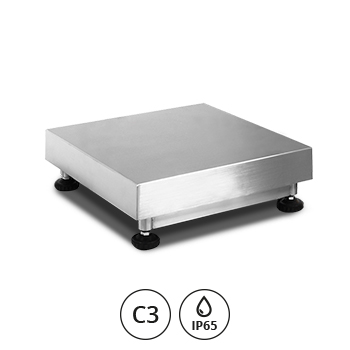

PBI SERIES SINGLE-CELL PLATFORMS

	PBI SERIES SINGLE-CELL PLATFORMS

Stainless Steel. Load cell in Aluminium. IP65 protection rating.

Precision class C3.

Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure. Suitable for creating scales and automatic weight checking systems for all industrial and commercial applications. The standard version is provided with approved load cell.

ENVIRONMENT: CORROSIVE

MAIN FEATURES

Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and moisture according to IP65 standards (350 Ohm input resistance).
Steel tubular structure, oven-fire painted black, with adjustable resting feet and level.
Fitted with satined AISI 304 stainless steel loading surface.
Up to 15 Vdc power supply.
Screened 3m connection cable with connectors for connection to the indicator.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval
High resolution models for internal factory use.
Version with ATEX certified load cell for use in hazardous areas.
Declaration of ATEX conformity of the system (for the code see the pages of the atex weight indicators and MB4 atex barrier kit)

ACCESSORIES

Indicator support column, raising frames, carts, roller units with idle rollers
Special sizes and capacities upon estimate

DOWNLOAD

T_TE_SERIE_22.10_EN.pdf

TECH_DRAWING_PB_PBI.pdf

????

Code	l x w x h (mm)	Max (kg)	d (g)	(g)*
PBTI6	300x300x130	6	2	-
PBTI15	300x300x130	15	5	5
PBTI30	300x300x130	30	10	10
PBKI6	300x400x140	6	2	-
PBKI15	300x400x140	15	5	5
PBKI30	300x400x140	30	10	10
PBKI60	300x400x140	60	20	20
PBQI30	400x400x140	30	10	10
PBQI60	400x400x140	60	20	20
PBQI150	400x400x140	150	50	50
PBMI30	400x500x140	30	10	10
PBMI60	400x500x140	60	20	20
PBMI150	400x500x140	150	50	50
PBXI60	600x600x165	60	20	20
PBXI150	600x600x165	150	50	50
PBXI300	600x600x165	300	100	100
PBYI60	600x800x170	60	20	20
PBYI150	600x800x170	150	50	50
PBYI300	600x800x170	300	100	100

Legal for trade approval

, class III or IIII, with Dini Argeo indicator (only at time of order)

	型号	说明
	TIP68	IP68台秤连接头。

Accessories

Calibration service with Dini Argeo indicator (only at time of order)

	型号	说明
	CT4	ISO 17025 (ACCREDIA/DAKKS)：标定证书，为量程5 - 60kg的工业秤、吊秤使用。
	CT5	ISO 17025 (ACCREDIA/DAKKS)：标定证书，为量程不超过60 - 300kg的工业秤、吊秤使用。

Areas which may be perforated
Areas which may not be perforated

* = Except for TRN model which has Ø 34 feet

** = Platforms which may not be perforated.

ALL THE MEASUREMENTS ARE IN MM AND MAY BE MODIFIED WITHOUT PRIOR NOTICE
