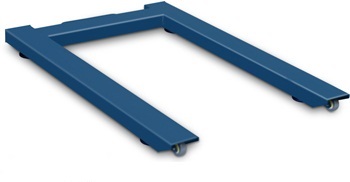

PW SERIES PALLET-WEIGHING
PW SERIES PALLET-WEIGHING
Low profile, easy to move, pallet-weighing module. Suitable for industrial and commercial applications, in which it’s necessary to quickly weigh goods on pallet trucks or lift trucks. Standard version is with approved load cell.
MAIN FEATURES
Fitted with 4 shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust
Moulded sheet-steel structure, oven-fire painted RAL 5007 blue.
Adjustable, shock-proof jointed feet, and level; also has 2 wheels and handles for moving it.
5/15 Vdc power supply.
Screened 3m long cable with connectors for connection to the indicator.
THE STAINLESS STEEL MODEL HAS THE STRUCTURE, MECHANICS, AND TRINKETS IN AISI304, AND IP68 STAINLESS STEEL LOAD CELLS
OPTIONS ONLY AVAILABLE AT TIME OF ORDER
Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with indicators of our production)
High resolution model for internal factory use.
ATEX certified version for use in hazardous areas
Declaration of ATEX conformity of the system (for the code see the pages of the atex weight indicators and MB4 atex barrier kit)
ACCESSORIES
Indicator support stand.
DOWNLOAD
LP_PW_17.02_UK.pdf
TECHNICAL_DRAWING_FPW.pdf
????
Code
l x w x h
(mm)
Nr. of cells
Max
(kg)
d
(g)
(g)*
2R (g)*
FPW15-1
1263x840x90
4x1000kg
1500
500
500
--
FPW30-1
1263x840x90
4x1000kg
3000
1000
1000
--
Legal for trade approval
, class III or IIII, with Dini Argeo indicator (only at time of order)
Accessories
型号
说明
CSP38I-1
称重显示器不锈钢地上立柱,尺寸450 x 450 mm,高917 mm,直径Ø = 38 mm
CSP38D
不锈钢称重显示器地上立柱,尺寸350 x 350 mm,高750 mm
IP68 protection
型号
说明
ETIP68
IP68台秤连接头。
PWI
closed structure and pointed end for eased entry and hypersanitizable stainless steel foot
