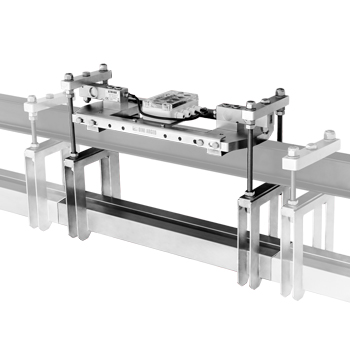

TWG SERIES OVERHEAD MONORAIL WEIGHING SCALES
TWG SERIES OVERHEAD MONORAIL WEIGHING SCALES
Low profile weighing modules for overhead monorails, easily adaptable with any type of monorail track systems, even already existing ones. Fitted approved load cells.
规格参数
Functions with 2 STAINLESS STEEL load cells with IP68 protection degree, approved according to OIML R60 C3 standards (3000 + 3000 divisions).
AISI 304 STAINLESS STEEL structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer's track section.
Electropolished structure for easy cleaning: The smooth surface prevents the formation of incrustations and the proliferation of microorganisms.
Maximum length of the customer's track section:
- 600 mm.
Up to 15 Vdc power supply.
Hermetic junction box and shielded 10m long 6-pin cable fitted with connectors for connection to the weight indicator.
可选配件
Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicators).
Models with special sizes and capacities (ask for estimate).
Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account.
IP69K version.
DOWNLOAD
DataRequest_TWG_ENG.pdf
USER_MAN_ENG_TWL_TWG_21.02.pdf
TECH_DRAWING_TWG.pdf
????
Code
l x w x h
(mm)
Nr. of cells
Max
(kg)
d
(g)
(g)*
2R (g)*
TWG30
550x220x110
2x500kg
300
100
100
-
TWG60
550x220x110
2x1000kg
600
200
200
100-200
Legal for trade approval
, class III or IIII, with Dini Argeo indicator (only at time of order)
Accessories
Protection for junction box/electronic circuits
型号
说明
GELBOX a>
(S1)
300ml装防冷凝胶,具有密封与绝缘功能,保护传感器不受电磁干扰。
WARNING:
For JB4Q, JB4QA, JBxQI and JBxQAI: 300ml of gel required
Calibration service with Dini Argeo indicator (only at time of order)
型号
说明
CT5
ISO 17025 (ACCREDIA/DAKKS):标定证书,为量程不超过60 - 300kg的工业秤、吊秤使用。
CT6
ISO 17025 (ACCREDIA/DAKKS):标定证书,为量程不超过300 - 1500kg的工业秤、吊秤使用。
IP68 protection
型号
说明
TIP68
IP68台秤连接头。
PDF版产品页
All the specifications and images can be subject to variations and upgrades without prior notice.
