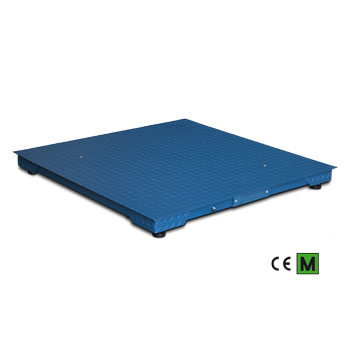

FL SERIES 4-CELL PLATFORMS
|
|
| |
|
|
|
Monobloc electronic platforms suitable for weighing above ground in all types of industrial and commercial applications. Connectable to any weight indicator for load cells.
|
|
????
| |
Code | l x w x h
(mm) | Nr. of cells | Max
(kg) | d
(g) |
(g)* |
2R (g)* |
| FLC600 | 800x800x120 | 4x500kg | 300/600 | 100/200 | 200 | 100/200 |
| FLA600-1 | 1000x1000x120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLA1500-1 | 1000x1000x120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLM600 | 1000x1250X120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLM1500-1 | 1000x1250x120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLB600-1 | 1250x1250x120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLB1500-1 | 1250x1250x120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLD1500-1 | 1250x1500x120 | 4x2000kg | 1500 | 500 | 500 | -- |
| FLD3000-1 | 1250x1500x120 | 4x2000kg | 1500/3000 | 500/1000 | 1000 | 500/1000 |
| FLE1500-1 | 1500x1500x120 | 4x2000kg | 1500 | 500 | 500 | -- |
| FLE3000-1 | 1500x1500x120 | 4x2000kg | 1500/3000 | 500/1000 | 1000 | 500/1000 |
Legal for trade approval
, class III or IIII, with Dini Argeo indicator (only at time of order)
Options
| | 型号 | 说明 |
 | CSP38I-1 | 称重显示器不锈钢地上立柱，尺寸450 x 450 mm，高917 mm，直径Ø = 38 mm |
 | CSP38D | 不锈钢称重显示器地上立柱，尺寸350 x 350 mm，高750 mm |
Frame for flush floor installation
Plates for fixing on the floor
| | 型号 | 说明 |
 | ETPFI-1 | 4片不锈钢地磅支脚固定片，为 ETG, ETH, ETL, ETA, ETM, ETB, ETD, ETE, ETF, LPI 型号地磅使用。 |
