 | | | | Wiring Code | | Color | Function | | RED | INPUT + | | BLUE | INPUT- | | BLACK | SENSE + | | WHITE | SENSE - | | GREEN | OUTPUT + | | YELLOW | OUTPUT - |
|
|
|
FOR HIGH ACCURACY APPLICATIONS

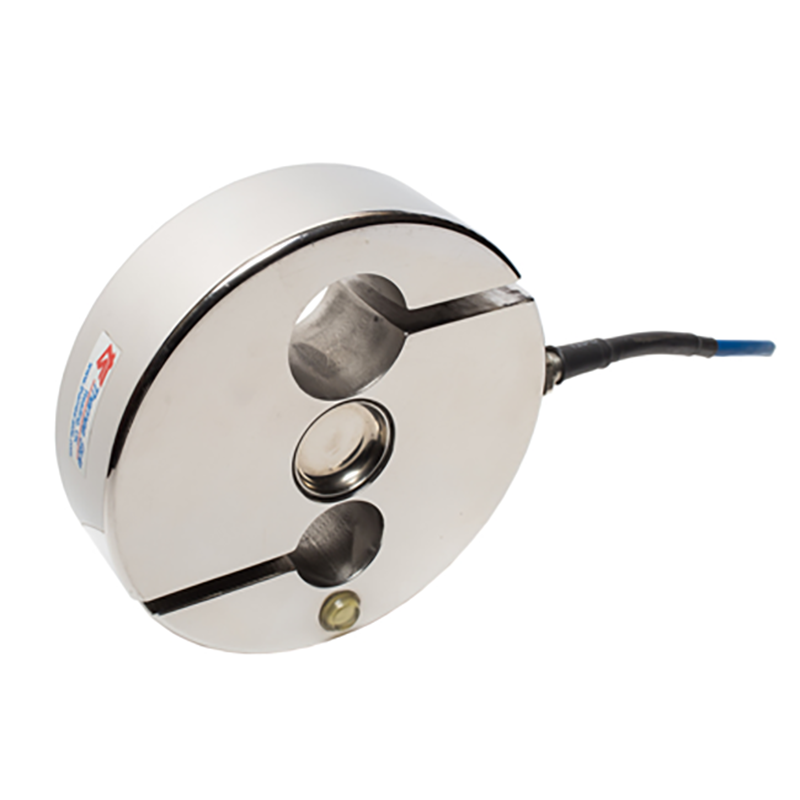

The T95 tension stainless steel load cell is most suitable for high accuracy applications where movement or vibration is present, e.g. mixers, agitators, catalyst vessels, weighing platforms, axle weighers and vehicle weigh-in-motion (WIM) systems. The T95 load cell is also available with ATEX and IECEx approval certification for all gas and dust zones. Barriers are not required for use in gas zone 2 or dust zones 20, 21, 22.
CAPACITIES (kg): 10000.
OIML R60. C3 precision class.
Stainless steel. IP68/IP69K protection.
| | | | - For applications in aggressive environments where stress corrosion or acid attack is a concern, a special Parylene coating can be specified as an option. Also available is an optional High Temperature variant, for continuous operation up to 150°C.
CAPACITIES (kg): 10000.
|
|
|
