TRD IP65 STAINLESS STEEL PRECISION SCALES SERIES


  TRD IP65 STAINLESS STEEL PRECISION SCALES SERIES

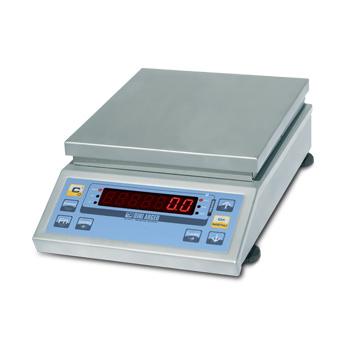

TRD4500
dimensions in mm
High resolution IP65 stainless steel balances for industrial and laboratory use. Particularly suitable for humid areas and for where there are strict hygiene requirements. The dual range models have a higher accuracy on the lower part of the range.

MAIN FEATURES

  • Scale body entirely in stainless steel.
  • Protection from dust and water splashes according to IP65 standards.
  • Waterproof keypad with 8 functional keys.
  • LED Display with 7 digits, 15 mm high, each having 7 bright red segments, for viewing the weight; and 6 LEDs for showing the active functions.
  • Functions with an accurate extensometric load cell.
  • Adjustable feet and level.
  • Digital calibration & set-up configurable from keyboard.
  • 12 Vdc power supply with an external 230 Vac power adapter.

SELECTABLE FUNCTIONS:

  • Formulation
  • Totalisation with 3 total levels
  • Totalisation in unloading
  • +/- Tolerance check
  • Counting
  • Programmable Set point
  • Percentage Weigh

KEYPAD FUNCTIONS:

  • Zero, Tare, Print, Mode, On-Off/Clear and 3 navigation keys
I/O SECTION:
  • RS232/C or TTL bidirectional output for connection to printer or remote display.
  • Bi-directional RS232/C or RS485 configurable output for PC, PLC and additional remote display.
OPTIONS ONLY AVAILABLE AT TIME OF ORDER
  • Built-in rechargeable battery
  • I/O expansion with 2 inputs and 2 relay outputs
  • ETHERNET and WIFI interfaces
  • Time/Date or Alibi memory with Time/Date
DOWNLOAD
????

Code		Plate
Max (mm)		Max
(g)		d
(g)		Linearity
(g) +/-
TRD6500 190x220 mm6.5000,10,15
TRD10K2 190x220 mm2.000/10.0000,1/10,2/1
Options only available at time of order
 型号说明
OBTPRB(S1) 一体式台式热敏打印机，配有ABS IP40外壳、1.5m长连接电缆及电源适配器。
TRBA(S1) 6 V 1.3 A/h内置可充电电池，可持续3～6小时（不可与以太接口结合使用）
DFCLK(S1) 实时时钟板，用于显示及打印日期与时间。
TRMEM-1(S1) Alibi内存(fiscal memory)，可储存13万个重量，带日期、时间
RSCBRJ(S1) 长1.5m RS232/C连接电缆，用于称重显示器与PC连接，一端用于连接PC的9芯母口，一端用于连接称重显示器的RJ接口。
TECSUP 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。
Accessories
 型号说明
UKPLUG Schuko转换BS1363电源适配器
TECMAN 打印版技术说明书（可免费从网上下载）
UMAN 打印版用户说明书（可免费从网上下载）

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
