| | 型号 | 说明 |

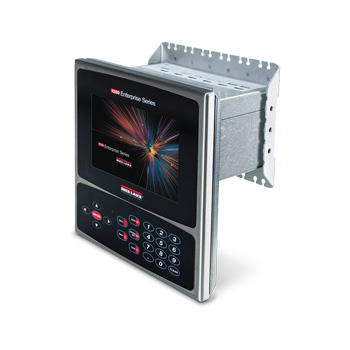

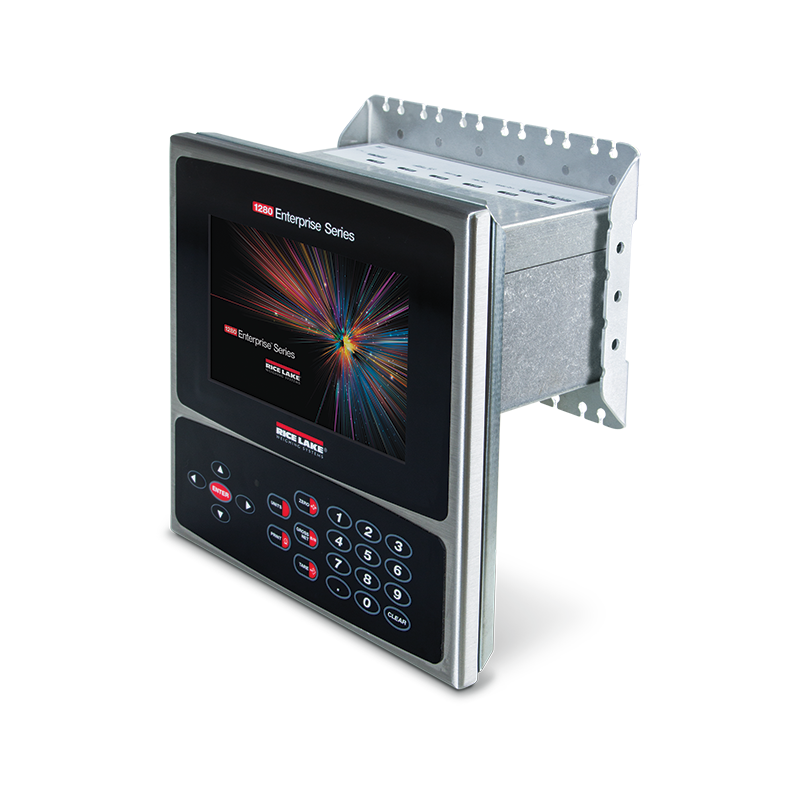

| 171663 | 1280 Enterprise programmable Color Touchscreen; Weight indicator/Controller; Panel Mount enclosure. SINGLE SCALE card. |

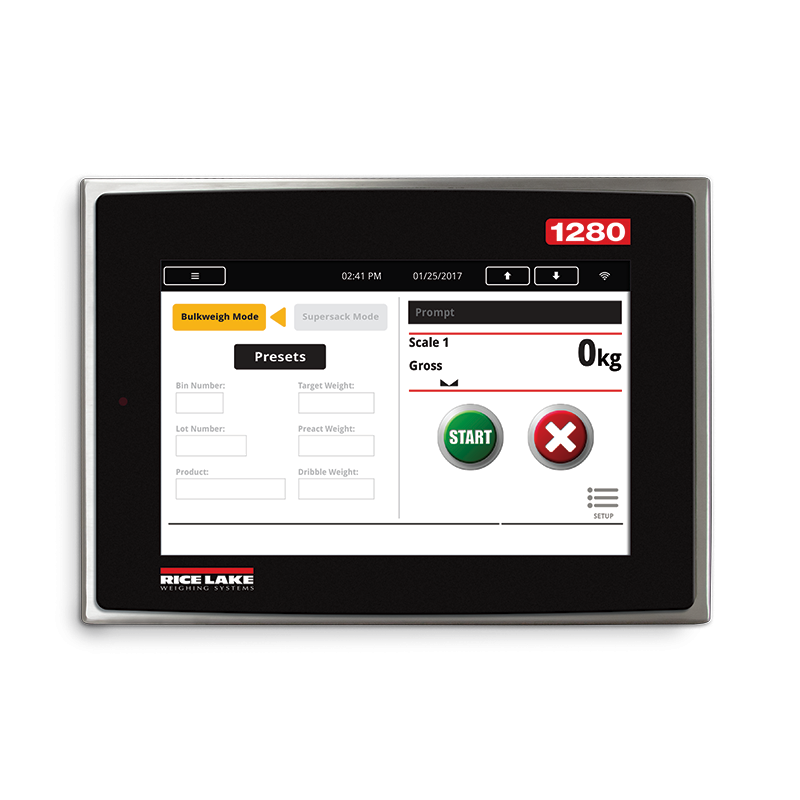

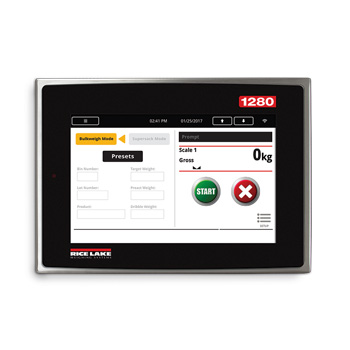

| 186465 | 1280 Enterprise programmable Color Touchscreen; Weight indicator/Controller; 12'' Touch-only display. SINGLE SCALE card. |

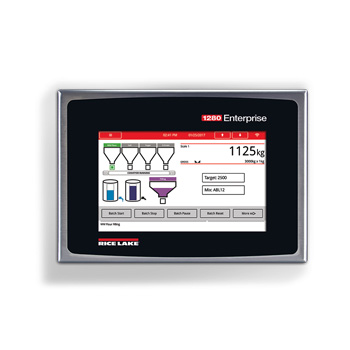

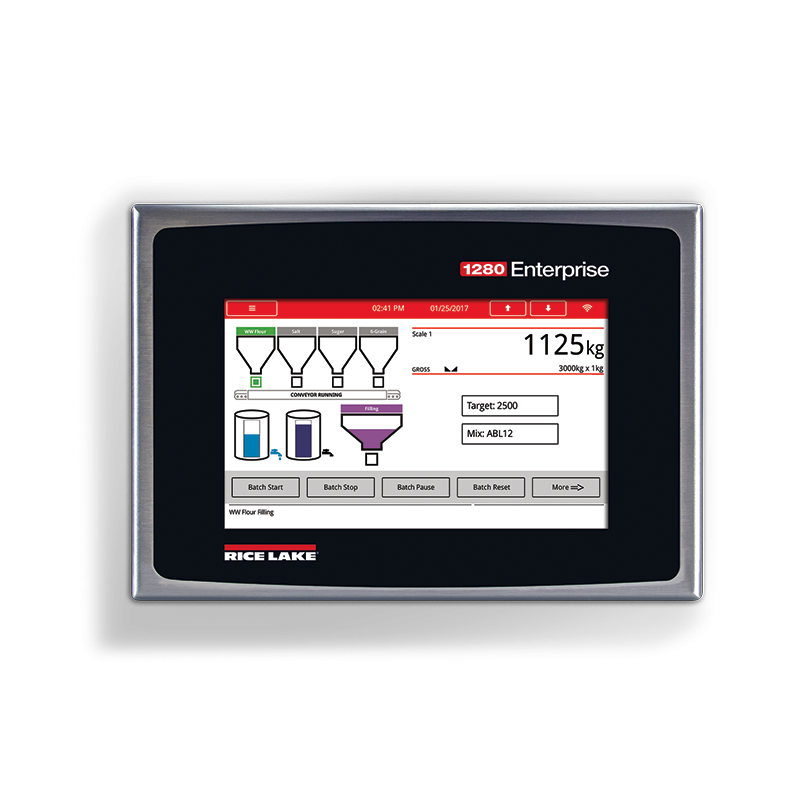

| 186618 | 1280 Enterprise programmable Color Touchscreen; Weight indicator/Controller; 7'' Touch-only display. SINGLE SCALE card. |
| 172186 | 1280 Enterprise programmable Color Touchscreen; Weight indicator/Controller; Panel Mount enclosure. DUAL SCALE card. |
| 172187 | 1280 Wall mount EU plug dual A/D |
| 174143 | 1280 Wall mount EU plug single A/D |
Communication Interfaces
| | 型号 | 说明 |
| 164689 | (S1) Relay Card Relay four-dry contact, max current
3A @ 30 VDC, 3A @250VAC. |
Approval seal
| | 型号 | 说明 |
| 166957 | Legal for trade sealing kit. |
Additional A/D conversion boards (for scales)
| | 型号 | 说明 |
| 164085 | (S1) A/D conversion board for analog scale. For 4 or 6-wire cells, max 16 x 350 Ohm. Input range: -10 to +40 mV. |
| 164683 | (S1) Board with double A/D converter for analog scales. For 4 or 6-wire cells, max 16 x 350 Ohm. Input range: -10 to +40 mV. |
Communication Interfaces
| | 型号 | 说明 |
| 164685 | (S1) Dual Serial Channel Two-channel, full duplex RS-232 with
CTS/RTS, RS-485 or RS-422,
1200-115200 baud |
| 165366 | (S1) Single Analog Out 16 bit, voltage output 0-10 VDC,current
output 0-20mA, 4-20mA. |
| 164686 | (S1) Dual Analog Out 16 bit, voltage output 0-10 VDC, current
output 0-20mA, 4-20mA |
| 164687 | (S1) 1280 Opt, Dual Analog In. Analog Input: +/-10VDC, +/-100mVDC, 0-20mA/4-20mA |
| 164689 | (S1) Relay Card Relay four-dry contact, max current
3A @ 30 VDC, 3A @250VAC. |
| 165793 | (S1) DeviceNet CompactCom option. |
Integrated Fieldbus Port
| | 型号 | 说明 |
| 165792 | (S1) Integrated EtherNet/IP fieldbus |
| 165794 | (S1) Integrated ProfiNet fieldbus |
| 165795 | (S1) Integrated Profibus DP fieldbus |
Digital Inputs / Outputs
| | 型号 | 说明 |
| 164684 | (S1) Digital I/O 24 channels, configurable as inputs or outputs. Inputs: 5 VDC max, active low;
Outputs: 20 mA max per channel, active low;
5 VDC source available: 500 mA max. |
Optional power supply cords
