NEW TE HYGIENX® SERIES SINGLE CELL PLATFORMS
|
|
NEW TE HYGIENX® SERIES SINGLE CELL PLATFORMS
|
|
| |
|
|

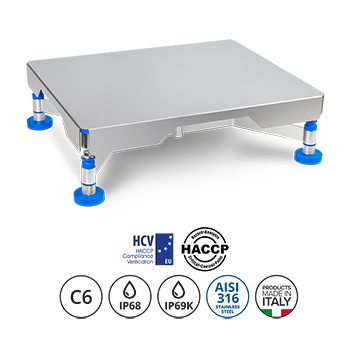

AISI 316 Stainless Steel. Load cell in Stainless Steel, IP68 and IP69K protection rating.
Precision class C3, C3MR, C3MI, C6, C6MR.
The new TE HYGIENX platform is designed for use in wet environments and where HACCP-compliant standards are required.
Ideal for food, chemical, pharmaceutical and cosmetics industries.
| ENVIRONMENT: HYGIENIC, WET, CORROSIVE |

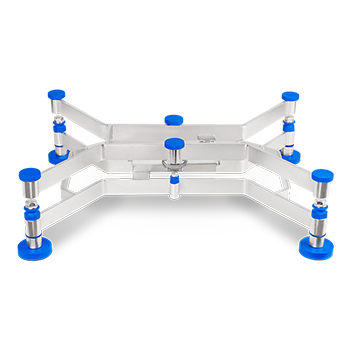

 | | | | - Made in Italy, the TE HYGIENX is constructed entirely of AISI 316 stainless steel that has been micro-bead blasted and electropolished. This ensures the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.
- The IP68 and IP69K rated load cell means that the entire scale can be sanitised with high-temperature and high-pressure jets of water.
|
|
|
????
| |
Code | l x w x h
(mm) | Max
(kg) | d
(g) |
(g)* | d HR
(g)* |
| HGXS3 | 230x330x90 | 3 | 0,5 | See table below | 0,2 |
| HGXS3-MI | 230x330x90 | 3 | -- | 0,5/1 (Multi interval) | -- |
| HGXS6 | 230x330x90 | 6 | 1 | See table below | 0,5 |
| HGXS6-MI | 230x330x90 | 6 | -- | 1/2 (Multi interval) | -- |
| HGXS12-MI | 230x330x90 | 12 | -- | 2/5 (Multi interval) | -- |
| HGXS15 | 230x330x90 | 15 | 2 | See table below | 1 |
| HGXT6 | 330x330x90 | 6 | 1 | See table below | 0,5 |
| HGXT6-MI | 330x330x90 | 6 | -- | 1/2 (Multi interval) | -- |
| HGXT12-MI | 330x330x90 | 12 | -- | 2/5 (Multi interval) | -- |
| HGXT15 | 330x330x90 | 15 | 2 | See table below | 1 |
| HGXT30 | 330x330x90 | 30 | 5 | See table below | 2 |
| HGXT30-MI | 330x330x90 | 30 | -- | 5/10 (Multi interval) | -- |
| HGXQ12-MI | 400x400x135 | 12 | -- | 2/5 (Multi interval) | -- |
| HGXQ15 | 400x400x135 | 15 | 2 | See table below | 1 |
| HGXQ30 | 400x400x135 | 30 | 5 | See table below | 2 |
| HGXQ30-MI | 400x400x135 | 30 | -- | 5/10 (Multi interval) | -- |
| HGXQ60 | 400x400x135 | 60 | 10 | See table below | 5 |
| HGXQ60-MI | 400x400x135 | 60 | -- | 10/20 (Multi interval) | -- |
| HGXM30-1 | 400x500x135 | 30 | 5 | See table below | 2 |
| HGXM30-MI-1 | 400x500x135 | 30 | -- | 5/10 (Multi interval) | -- |
| HGXM60-1 | 400x500x135 | 60 | 10 | See table below | 5 |
| HGXM60-MI-1 | 400x500x135 | 60 | -- | 10/20 (Multi interval) | -- |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
| | 型号 | 说明 |
| ECEM2MI | for single platform/scale in xxx-MI version. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options. |
| |
C3 |
C6 |
|
ECEM
3000e |
ECEM2
3000+3000e |
ECEM2 MI
2x3000e |
ECEM-C6
6000e |
ECEM2-C6
6000+6000e |
| Max (kg) |
e (g) |
Max (kg) |
e (g) |
Max (kg) |
e (g) |
Max (kg) |
e (g) |
Max (kg) |
e (g) |
HGX S
230x330x90mm |
3 |
1 |
1,5/3 |
0,5/1 |
3 |
0,5/1 |
3 |
0,5 |
-- |
-- |
| 6 |
2 |
3/6 |
1/2 |
6 |
1/2 |
6 |
1 |
3/6 |
0,5/1 |
| -- |
-- |
-- |
-- |
12 |
2/5 |
-- |
-- |
-- |
-- |
| 15 |
5 |
6/15 |
2/5 |
-- |
-- |
12 |
2 |
6/12 |
1/2 |
| |
HGX T
330x330x90mm |
6 |
2 |
3/6 |
1/2 |
6 |
1/2 |
6 |
1 |
3/6 |
0,5/1 |
| -- |
-- |
-- |
-- |
12 |
2/5 |
-- |
-- |
-- |
-- |
| 15 |
5 |
6/15 |
2/5 |
-- |
-- |
12 |
2 |
6/12 |
1/2 |
| 30 |
10 |
15/30 |
5/10 |
30 |
5/10 |
30 |
5 |
12/30 |
2/5 |
| |
HGX Q
400x400x115mm |
-- |
-- |
-- |
-- |
12 |
2/5 |
-- |
-- |
-- |
-- |
| 15 |
5 |
6/15 |
2/5 |
-- |
-- |
12 |
2 |
6/12 |
1/2 |
| 30 |
10 |
15/30 |
5/10 |
30 |
5/10 |
30 |
5 |
12/30 |
2/5 |
| 60 |
20 |
30/60 |
10/20 |
60 |
10/20 |
60 |
10 |
30/60 |
5/10 |
| |
HGX M
400x500x115mm |
30 |
10 |
15/30 |
5/10 |
30 |
5/10 |
30 |
5 |
12/30 |
2/5 |
| 60 |
20 |
30/60 |
10/20 |
60 |
10/20 |
60 |
10 |
30/60 |
5/10 |
IP69K weight indicator
???????
| | 型号 | 说明 |

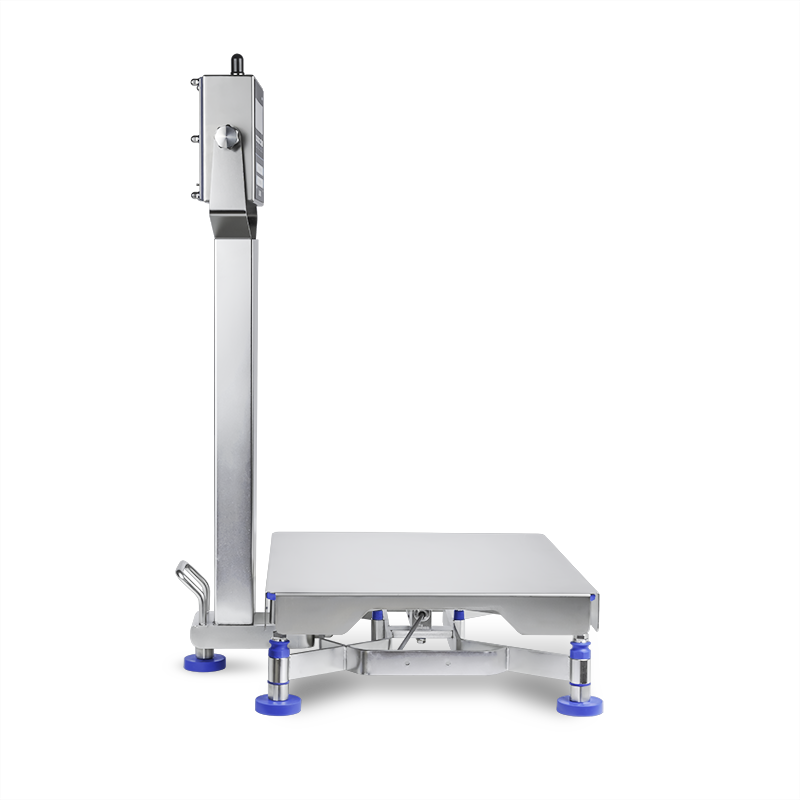

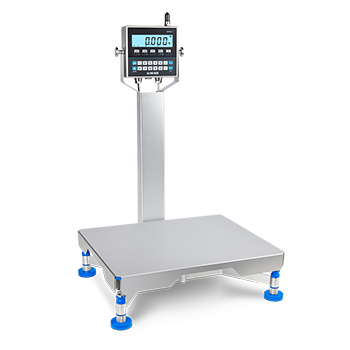

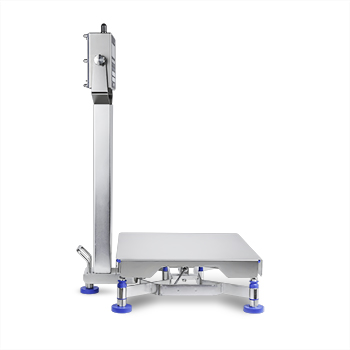

| HGXCL-350 | AISI 316 stainless steel column h=350 mm, for integrated installation with DFWX-HGX indicators. Easy-to-clean construction with a fifth support foot for greater stability and carrying handle. Note: The length of the cell cable is reduced to 1 metre. |
| HGXCL-500 | AISI 316 stainless steel column h = 500mm, for integrated installation with DFWX-HGX. Easy-to-clean construction with a fifth support foot for greater stability and carrying handle. Note: The length of the cell cable is reduced to 1 metre. |
| 3590HGXCL-350 | AISI 316 stainless steel column h=350 mm, for integrated installation with 3590-HGX indicators. Easy-to-clean construction with a fifth support foot for greater stability and carrying handle. Note: The length of the cell cable is reduced to 1 metre. |
| 3590HGXCL-500 | AISI 316 stainless steel column h = 500mm, for integrated installation with 3590-HGX. Easy-to-clean construction with a fifth support foot for greater stability and carrying handle. Note: The length of the cell cable is reduced to 1 metre. |
Other options
| | 型号 | 说明 |
| TECSUP | 电话技术支持或公司提供仪表及打印输出配置，以每小时计价。 |
| TECMAN | 打印版技术说明书（可免费从网上下载） |
| UMAN | 打印版用户说明书（可免费从网上下载） |
