单剪切梁





SBX-1K系列单剪切梁传感器,量程500kg - 2000kg


  SBX-1K系列单剪切梁传感器,量程500kg - 2000kg

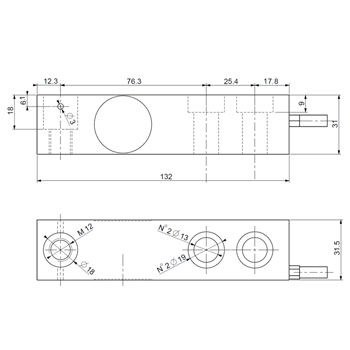

尺寸与线缆定义
  • NOTE: dimensions in mm



  • Decoding of the standard cable colours

    Colour
    Function
      --
    SHIELD
    YELLOW
    SIG +
    GREY
    SENSE +
    BROWN
    EXC +
    WHITE
    SIG -
    GREEN
    EXC -
    PINK
    SENSE -
不锈钢单剪切梁传感器,广泛应用于地磅、称量罐或料仓等系统,还提供CE-M认证型号。

量程 (kg): 500, 1000, 2000.
17-4 PH不锈钢 IP68 C3精度

规格参数

  • C3精度
  • 17-4 PH不锈钢结构,激光焊接工艺
  • IP68
  • 量程可选500 - 2000 kg
  • 配屏蔽电缆
  • 可选OIML及检测证书

性能参数

  • 小检定分度值:Vmin = EMax/10.000
  • 大检定分度数:nLC = 3000
  • 综合误差:0.017% F.S.
  • 灵敏度:2mV/V +/- 0.5%
  • 温度对零点输出的影响:0.002% F.S. /10°C
  • 温度对灵敏度的影响:0.002%F.S. /10°C
  • 温度补偿范围:-10°C/+40°C
  • 工作温度:-20°C/+60°C
  • 蠕变 (30分钟):0.024% F.S.
  • 激励电压:15 VDC
  • 输入阻抗:1100 ± 20 Ohm
  • 输出阻抗:1000 ± 20 Ohm
  • 绝缘阻值:>5000 MOhm
  • 安全过载:150% F.S.
  • 极限过载:300% F.S.
  • 6芯屏蔽电缆,长5m,直径5mm
DOWNLOAD
????

Code
Max
(kg)
SBX500-1KL-BE 500
SBX1000-1KL-BE 1000
SBX2000-1KL-BE 2000
SBX2500-1KL-BE 2500
Joints
 型号说明
KSBN2 碳钢镀锌安装模块,供量程300 - 2000kg的SBT/SBK/SBX系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBC2 不锈钢安装模块,供量程300 - 2000kg的SB系列传感器使用。
KSBX2 不锈钢碳钢镀锌安装模块,供量程300 - 2500kg的SBK/SBX系列传感器使用。 不包含传感器
KSB2H 不锈钢固定板,螺栓尺寸M12x50,适用于量程不超过2000kg的SB系列传感器。
 型号说明
SBFI-1 AISI304不锈钢活动支脚,配防滑橡胶圈与缓冲垫。适用于量程不超过2000kg的SB系列传感器。
????
 型号说明
LCCB 6芯屏蔽电缆,供传感器或接线盒接线使用。€/米
LCCBA Ex 6-pole shielded cable for RS232 serial port/power supplier, for using in hazardous areas. Price/meter
LCCBM6 4芯屏蔽电缆,供传感器或接线盒接线使用。€/米
EXCB6(S6) 传感器防爆6芯屏蔽电缆,供本安区域内使用。€/米
PRCB 电缆外层保护套。€/米
 型号说明
DGT1 导轨式安装称重显示器 可安装在DIN导轨上使用,配有5个按键、LED显示屏、实时时钟板、Alibi内存板及多功能程序软件。
DGT1SX 重量变送器在DIN杆,2输入2输出 装有5键键盘和LED显示。多功能称重程序。
DGT4X DIN导轨式安装重量变送器/称重显示器带2输入2输出 配有5个按键、LED显示屏及标准软件型号。
 型号说明
DFWIECEX ATEX and IECEx certified weight indicator up to zone 1/21. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135°C Db X for dust (Ta=0°C/+50°C). Always combine with IECEXPW power supply or IECEXBP battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).
DFWIECEXAN ATEX and IECEx certified weight indicator up to zone 1/21. With integrated intrinsically safe analogue output and cable gland. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135°C Db X for dust (Ta=0°C/+50°C). Always combine with IECEXPW power supply or IECEXBP battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).
DFWIECEX-BATCH1 ATEX and IECEx certified weight indicator up to zone 1/21 for mono-component in-load dosage. Intrinsically safe RS485 serial port, 4 digital inputs and 12 digital outputs included. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135°C Db X for dust (Ta=0°C/+50°C). Always combine with IECEXPW power supply or IECEXBP battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).
DFW-IECEX3GD Ex Indicator for Zone 2/22.
DFW-IECEX3GDZB Ex Indicator for zone 2/22.
IECEx Zener barrier

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
