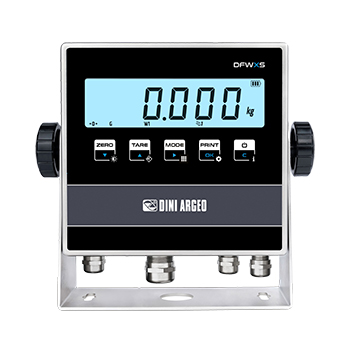

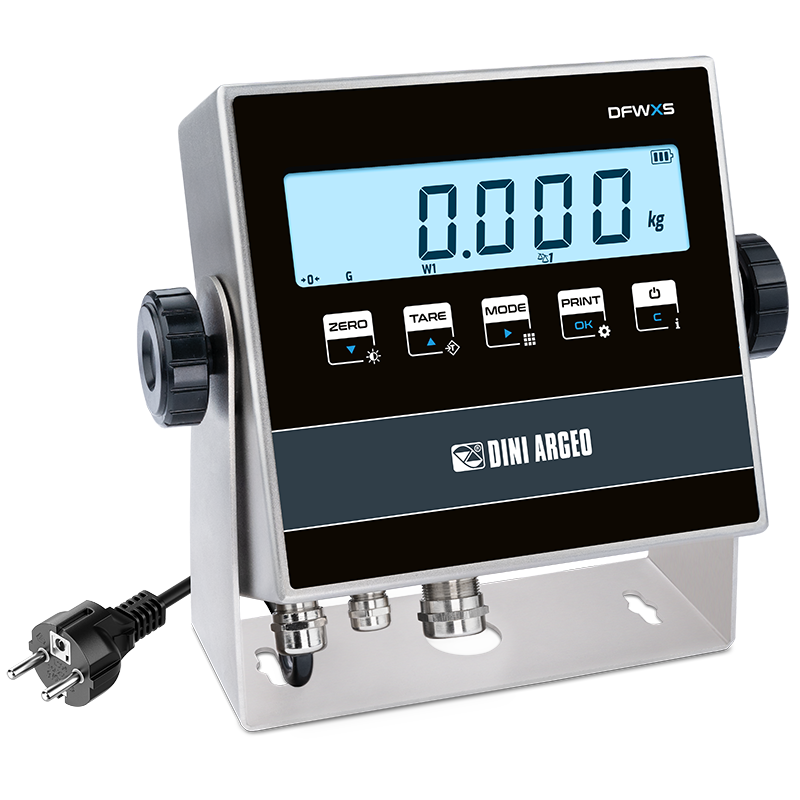

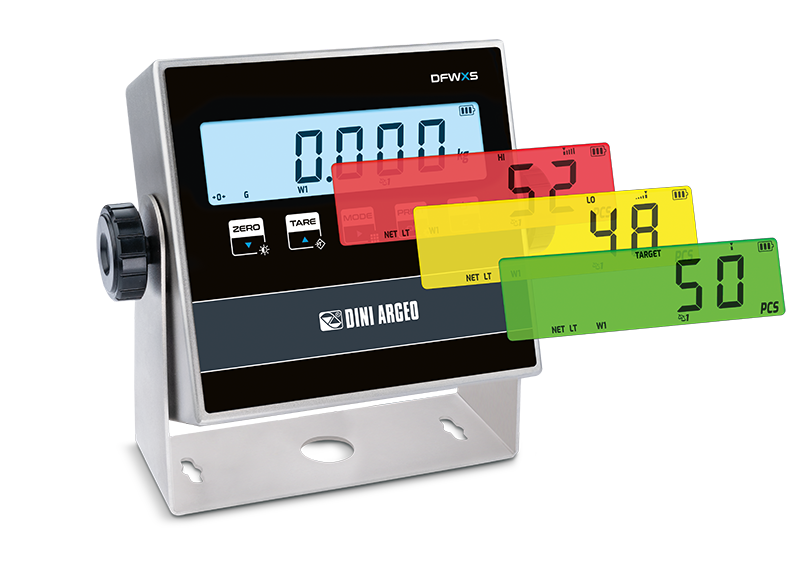

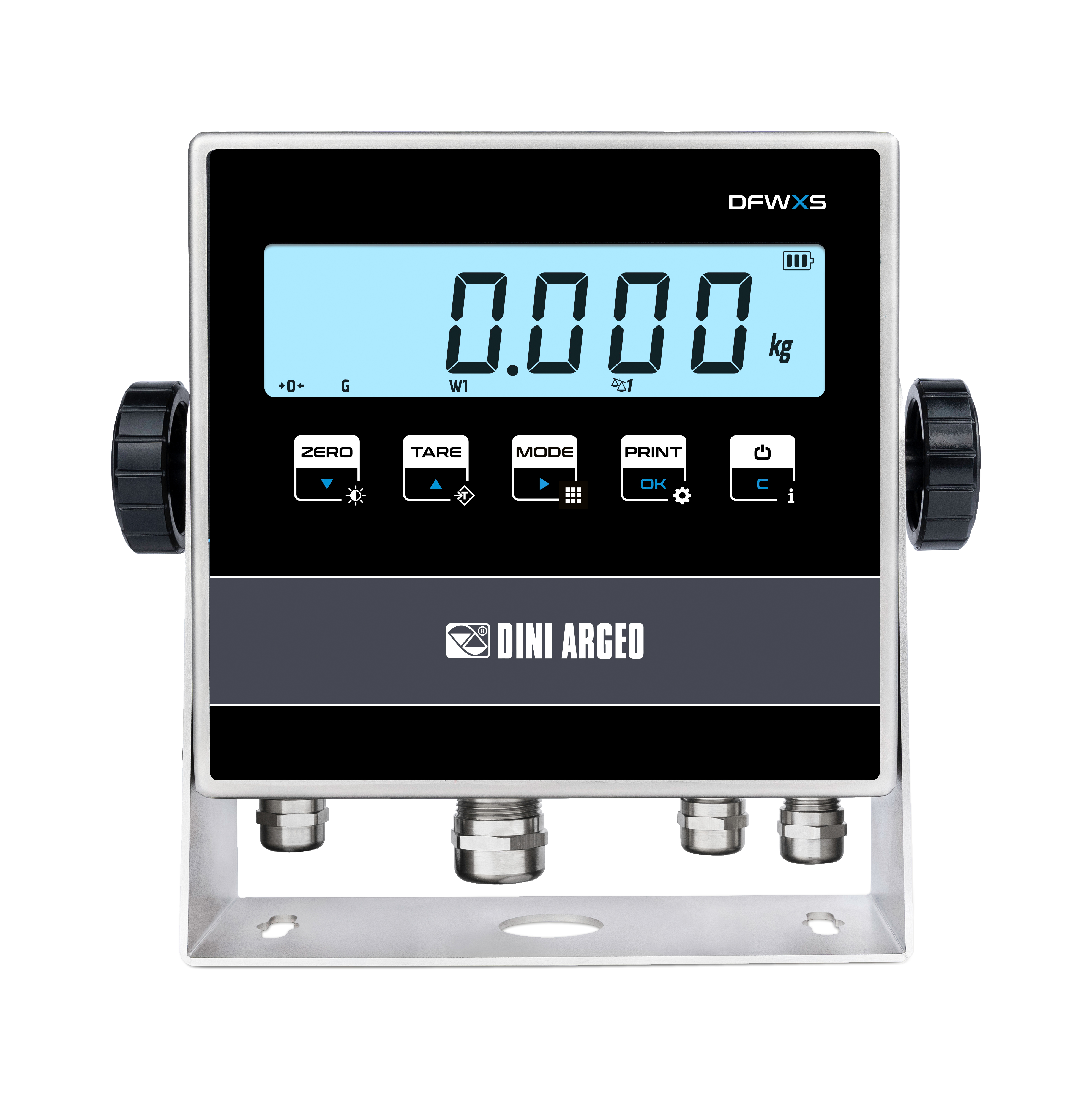

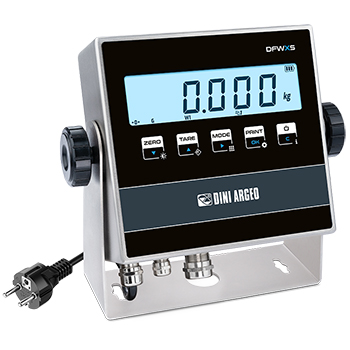

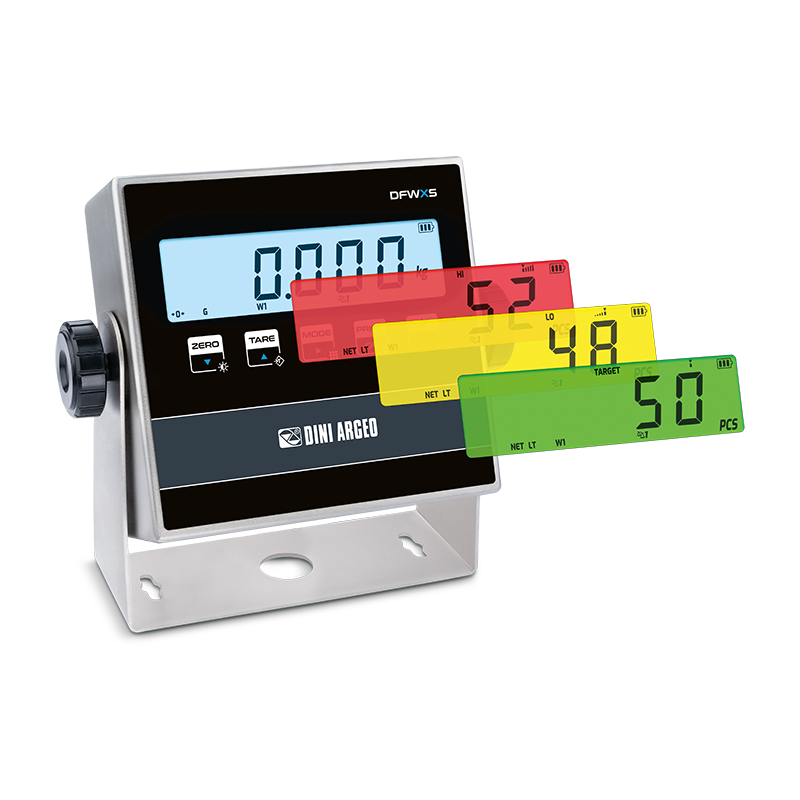

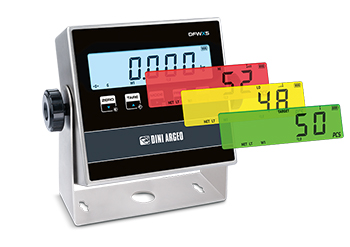

DFW系列





DOWNLOAD
可供版本

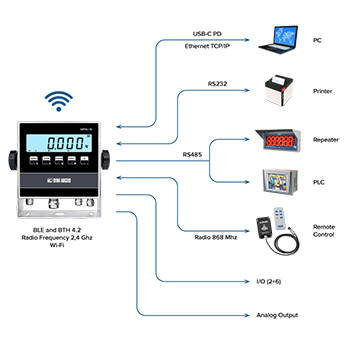

通信接口
 型号说明
FO-RF2G4 Internal 2.4 GHz radio module, assembly included.
 型号说明
OBRF2G4X(S1) External module for 2.4GHz radio frequency communication. Equipped with 3m cable. IP67 degree of protection. Communication distance: up to 130 m outdoors, 70 m indoors. To be connected to an RS232 port. Includes PG9 cable gland for indicator.
OBRF2G4X-USB External module for 2.4GHz radio frequency communication, with USB type A port, for PC. Equipped with 1 m cable. IP67 degree of protection. Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR.
 型号说明
FO-CLOCK Calendar clock board, assembly included.
 型号说明
FO-ALMEM Alibi Memory board, assembly included.
 型号说明
FO-ANOUT Opto-isolated analog output, mounting included.
RSCBTW(S3) 四芯屏蔽双绞线 (2x2x0.34 mm²),用于RS485通信或模拟输出。聚烯烃内护套。镀锡铜编织屏蔽层。PVC外护套,直径7毫米。工作温度范围:-30至+80°C。最小弯曲半径≥6倍外径。每米价格。最大订购长度:100米(超长规格需另行定制)。
数字输入/输出
 型号说明
CB10P(S2) Shielded cable 10x0.25 mm² (suitable for Ex zones). PVC sheathing, 7.5mm diameter. Operating temperature: -25 / +70 °C (fixed installation). Minimum bending radius >/= 8 x O.D. €/m. Maximum length that can be ordered: 100 m or multiples.
 型号说明
RSCBTW(S3) 四芯屏蔽双绞线 (2x2x0.34 mm²),用于RS485通信或模拟输出。聚烯烃内护套。镀锡铜编织屏蔽层。PVC外护套,直径7毫米。工作温度范围:-30至+80°C。最小弯曲半径≥6倍外径。每米价格。最大订购长度:100米(超长规格需另行定制)。
LEVEL3AX(S3) External module for reading and compensation of weighing system inclination, approved for use in third-party relationship, to be combined with DFWX series indicators. Collegamento in 232 (485 su richiesta). Cable supplied as standard, length 3m.
打印机/标签机
 型号说明
PR80-3(S1) Thermal printer with print cutter. Paper roll not included.
LP542TE(S1) Direct termal labeller. 标签可剥离式热敏标签打印机,配有连接称重显示器的1.5m长RS232电缆,外接100/240Vac电源适配器。
CNFSERV 提供满足客户需求的打印格式配置技术服务:DFW系列称重显示器(设置功能模式与标题行)连TPR系列打印机或LP542S标签打印机。
CODEPG 在TPR打印机上加载自定义代码页的服务 (标准为PC437 - 中欧、美国)
立柱和支撑支架
 型号说明
TCBI350-2 Stainless Steel column, length 350mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL). NOTE: -2 column models do not include the indicator holder bracket.
TCBI500-2 Stainless Steel column, length 500mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL).
TCBI700-2 Stainless Steel column, length 700mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded (to be combined with DFWXCL or 3590CL).
 型号说明
LCCBC(S1) 用于连接平台与指示器的电缆,长度为50厘米。 需焊接的母头连接器。
LCCB5C(S1) LCCBC电缆 + 5米延长线。 长50cm的6芯屏蔽电缆(称重显示器端),一端用AMP接插件连至称重显示器,一端用于连接秤台的7芯公口 + 附5m长电缆的7芯母口(秤台端)。
LCCB10C(S1) LCCBC电缆 + 10米延长线。 长50cm的6芯屏蔽电缆(称重显示器端),一端用AMP接插件连至称重显示器,一端用于连接秤台的7芯公口 + 附10m长电缆的7芯母口(秤台端)。
电缆接头
 型号说明
KCEM 秤盘与Welmec秤体组合,适用于秤具的合法贸易用途。净价。 本服务可与Dini Argeo指示器配合使用。

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
